DF19KR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER BRD EDGE 14P 1MM
| Part | Material Flammability Rating | Mounting Type | Termination | Shrouding | Contact Type | Insulation Material | Features | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Style | Contact Finish - Mating | Voltage Rating | Number of Rows | Contact Material | Number of Positions | Connector Type | Insulation Height [custom] | Insulation Height [custom] | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Current Rating (Amps) | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

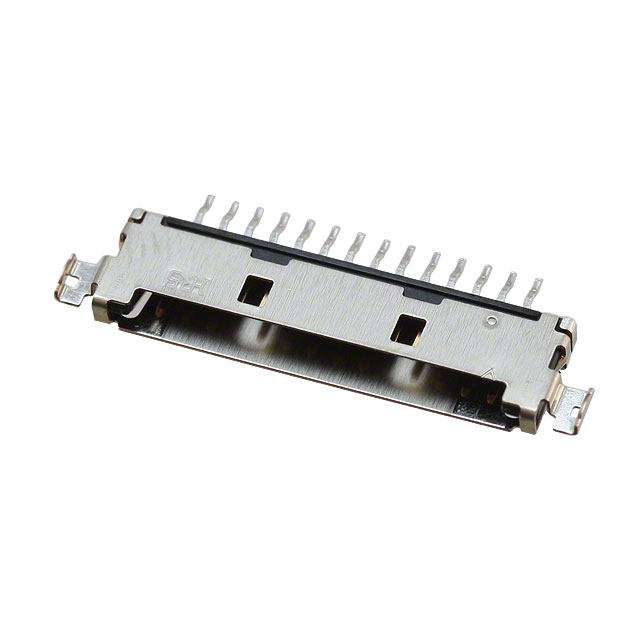

 Hirose Electric Co Ltd | UL94 V-0 | Board Edge Cutout Surface Mount Right Angle | Solder | Shrouded - 3 Wall | Male Pin | Nylon Polyamide (PA) | Solder Retention | Beige | 85 °C | -35 °C | Board to Cable/Wire | Gold | 100 V | 1 | Phosphor Bronze | 14 | Receptacle Reverse Pin | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Friction Lock | All | ||||||

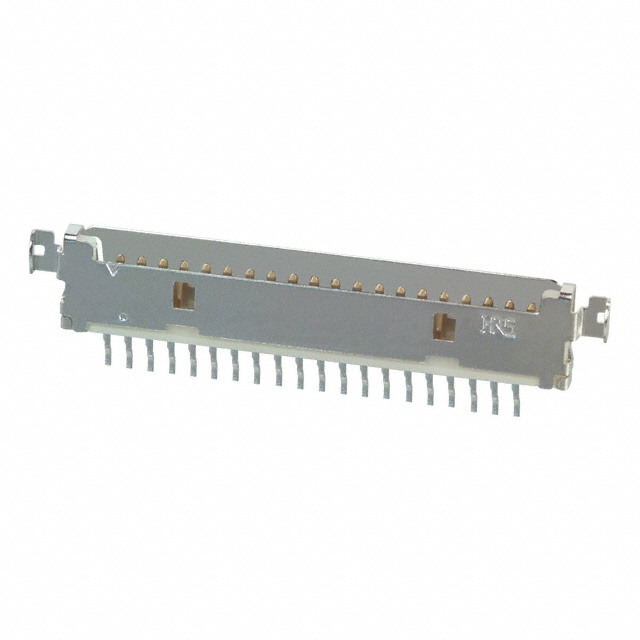

 Hirose Electric Co Ltd | UL94 V-0 | Board Edge Cutout Surface Mount Right Angle | Solder | Shrouded - 3 Wall | Male Pin | Nylon Polyamide (PA) | Solder Retention | Black | 85 °C | -35 °C | Board to Cable/Wire | Gold | 100 V | 1 | Phosphor Bronze | 20 | Receptacle Reverse Pin | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Friction Lock | All | ||||||

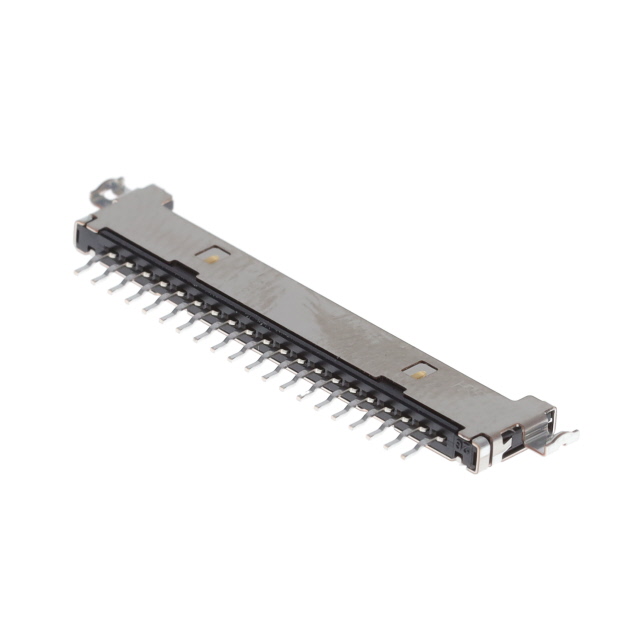

 Hirose Electric Co Ltd | UL94 V-0 | Board Edge Cutout Surface Mount Right Angle | Solder | Shrouded - 3 Wall | Male Pin | Nylon Polyamide (PA) | Solder Retention | Beige | 85 °C | -35 °C | Board to Cable/Wire | Gold | 100 V | 1 | Phosphor Bronze | 20 | Receptacle Reverse Pin | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Friction Lock | All | ||||||

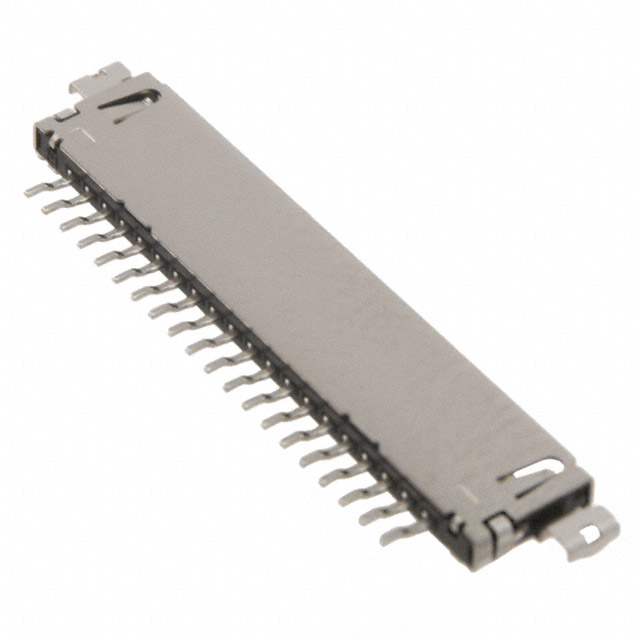

 Hirose Electric Co Ltd | UL94 V-0 | Board Edge Cutout Surface Mount Right Angle | Solder | Shrouded - 3 Wall | Male Pin | Nylon Polyamide (PA) | Solder Retention | Black | 85 °C | -35 °C | Board to Cable/Wire | Gold | 100 VAC | 1 | Phosphor Bronze | 20 | Receptacle Reverse Pin | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Friction Lock | All | 0.1 Ám | 3.94 Áin | Gold | Varies by Wire Gauge | 3.94 µin | 0.1 µm |
 Hirose Electric Co Ltd | |||||||||||||||||||||||||||||

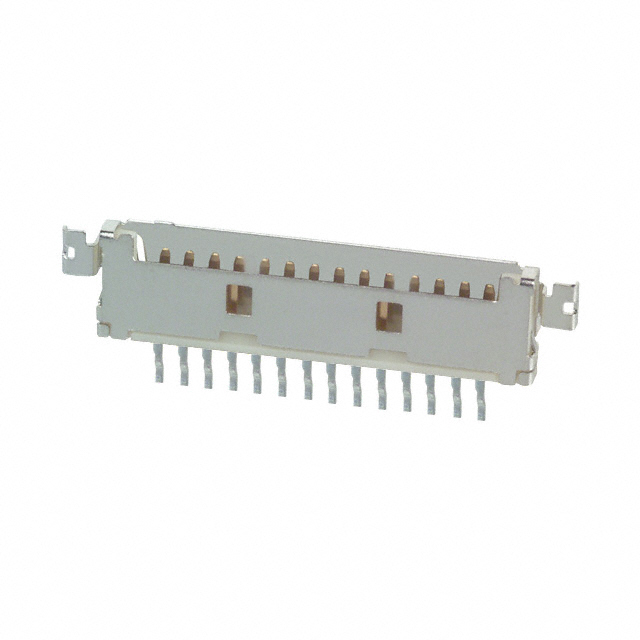

 Hirose Electric Co Ltd | UL94 V-0 | Board Edge Cutout Surface Mount Right Angle | Solder | Shrouded - 3 Wall | Male Pin | Nylon Polyamide (PA) | Solder Retention | Black | 85 °C | -35 °C | Board to Cable/Wire | Gold | 100 V | 1 | Phosphor Bronze | 14 | Receptacle Reverse Pin | 1.45 mm | 0.057 in | 1 mm | 0.039 in | Friction Lock | All |
