TLVH431 Series

Catalog

V-REF PROGRAMMABLE 1.24V TO 18V 60MA 6-PIN SOT-323 T/R

Part	Voltage - Output (Min/Fixed)	Current - Output	Voltage - Output (Max) [Max]	Output Type	Package / Case	Noise - 10Hz to 10kHz	Operating Temperature [Max]	Operating Temperature [Min]	Reference Type	Temperature Coefficient	Supplier Device Package	Tolerance	Current - Cathode	Mounting Type

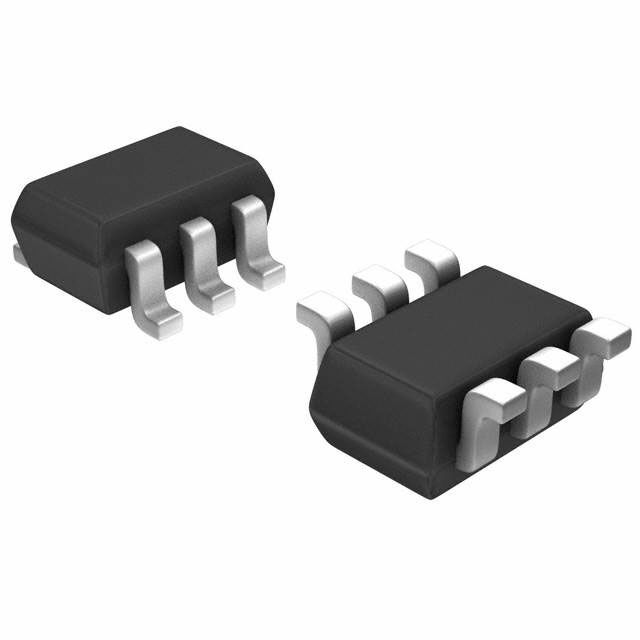

STMicroelectronics TLVH431LICT	1.24 V	60 mA	18 V	Adjustable	6-TSSOP SC-88 SOT-363	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-323-6L	1.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431LIL5T	1.24 V	60 mA	18 V	Adjustable	SC-74A SOT-753	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-5	1.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431AIL5T	1.24 V	60 mA	18 V	Adjustable	SC-74A SOT-753	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-5	0.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431LIL3T	1.24 V	60 mA	18 V	Adjustable	SC-59 SOT-23-3 TO-236-3	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-3	1.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431AICT	1.24 V	60 mA	18 V	Adjustable	6-TSSOP SC-88 SOT-363	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-323-6L	0.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431MIL3T	1.24 V	60 mA	18 V	Adjustable	SC-59 SOT-23-3 TO-236-3		125 °C	-40 C	Shunt	100 ppm/°C	SOT-23-3	1 %	200 µA	Surface Mount
STMicroelectronics TLVH431BICT	1.24 V	60 mA	18 V	Adjustable	6-TSSOP SC-88 SOT-363	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-323-6L	0.25 %	200 µA	Surface Mount
STMicroelectronics TLVH431AIL3T	1.24 V	60 mA	18 V	Adjustable	SC-59 SOT-23-3 TO-236-3	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-3	0.5 %	200 µA	Surface Mount
STMicroelectronics TLVH431BIL3T	1.24 V	60 mA	18 V	Adjustable	SC-59 SOT-23-3 TO-236-3	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-3	0.25 %	200 µA	Surface Mount
STMicroelectronics TLVH431BIL5T	1.24 V	60 mA	18 V	Adjustable	SC-74A SOT-753	30 mVrms	125 °C	-40 °C	Shunt	100 ppm/°C	SOT-23-5	0.25 %	200 µA	Surface Mount
