STWA68 Series

Catalog

AUTOMOTIVE-GRADE N-CHANNEL 650 V, 33 MOHM TYP., 72 A MDMESH DM6 POWER MOSFET IN A TO-247 LONG LEADS PACKAGE

Part	Rds On (Max) @ Id, Vgs [Max]	Package / Case	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Vgs(th) (Max) @ Id	Drive Voltage (Max Rds On, Min Rds On)	Drain to Source Voltage (Vdss)	Qualification	Power Dissipation (Max)	Supplier Device Package	FET Type	Grade	Input Capacitance (Ciss) (Max) @ Vds	Vgs (Max)	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs [Max]

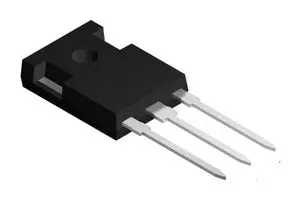

STMicroelectronics STWA68N65DM6AG	39 mOhm	TO-247-3	MOSFET (Metal Oxide)	150 °C	-55 °C	4.75 V	10 V	650 V	AEC-Q101	480 W	TO-247 Long Leads	N-Channel	Automotive	5900 pF	25 V	Through Hole	72 A	118 nC
