C3063 Series

Catalog

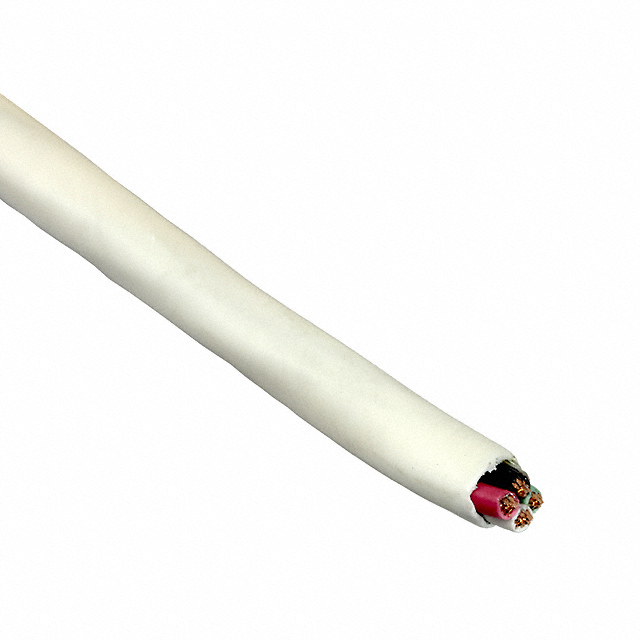

CABLE 4COND 18AWG NAT SHLD 100'

Part	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Max]	Shield Coverage	Shield Material	Length [x]	Length [x]	Jacket Color	Cable Type	Jacket (Insulation) Thickness [x]	Jacket (Insulation) Thickness [x]	Usage	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Wire Gauge	Jacket (Insulation) Material	Voltage	Conductor Insulation	Ratings	Features	Number of Conductors
Prysmian Group C3063.41.86	152.4 m 304.8 m	500 ft 1000 ft	0.185 in	4.7 mm	75 ░C	100 %	Flexfoil®	100 ft	30.5 m	Natural	Multi-Conductor	0.381 mm	0.015 in	Communication Control	Copper Annealed Bare	26 AWG	7	Foil	18 AWG	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	ASTM B-3	Drain Wire Rip Cord	4
Prysmian Group C3063.41.86	15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	0.185 in	4.7 mm	75 ░C			100 ft	30.5 m	Natural	Multi-Conductor	0.381 mm	0.015 in	Communication Control	Copper Annealed Bare	26 AWG	7	Foil	18 AWG	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	ASTM B-3	Drain Wire Rip Cord	4
Prysmian Group C3063.30.86	304.8 m	1000 ft	0.185 in	4.7 mm	75 ░C	100 %	Flexfoil®			Natural	Multi-Conductor	0.381 mm	0.015 in	Communication Control	Copper Annealed Bare	26 AWG	7	Foil	18 AWG	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	ASTM B-3	Drain Wire Rip Cord	4
Prysmian Group C3063.30.86	304.8 m	1000 ft	0.185 in	4.7 mm	75 ░C					Natural	Multi-Conductor	0.381 mm	0.015 in	Communication Control	Copper Annealed Bare	26 AWG	7	Foil	18 AWG	Poly-Vinyl Chloride (PVC)	150 V	Poly-Vinyl Chloride (PVC)	ASTM B-3	Drain Wire Rip Cord	4
