UVC Series
Manufacturer: Nichicon
Beta
⌘K

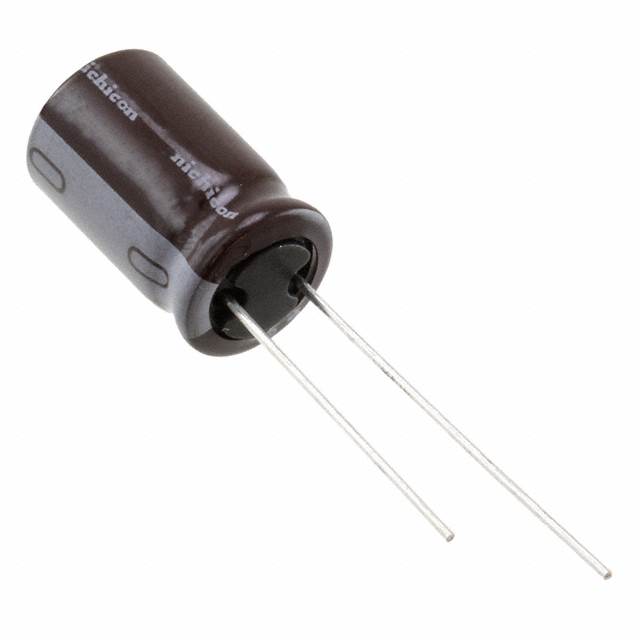

CAP ALUMINUM LYTIC 4.7UF 400V 20% (8 X 11.5MM) RADIAL 5MM 0.07A 2000H 105°C AMMO
| Part | Applications | Voltage - Rated | Polarization | Ripple Current @ Low Frequency | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Lifetime @ Temp. | Tolerance | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ High Frequency | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Capacitance | Lead Spacing | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | General Purpose | 400 V | Polar | 70 mA | Can Radial | -40 C | 105 ░C | 2000 Hrs | 20 % | Through Hole | 0.315 in | 8 mm | 105 mA | 0.512 " | 13 mm | 4.7 µF | 0.138 in | 3.5 mm |
 Nichicon | General Purpose | 400 V | Polar | 85 mA | Can Radial | -40 C | 105 ░C | 2000 Hrs | 20 % | Through Hole | 0.315 in | 8 mm | 127.5 mA | 0.709 in | 18 mm | 8.2 µF | 0.138 in | 3.5 mm |
 Nichicon | General Purpose | 400 V | Polar | 150 mA | Can Radial | -40 C | 105 ░C | 2000 Hrs | 20 % | Through Hole | 0.394 in | 10 mm | 225 mA | 0.709 in | 18 mm | 15 µF | 0.197 " | 5 mm |
