RJK5002DPD Series

Nch Power MOSFET 500V 2.4A 5000mohm TO-252 / DPAK

Catalog

Nch Power MOSFET 500V 2.4A 5000mohm TO-252 / DPAK

Part	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Technology	Operating Temperature	Supplier Device Package	Rds On (Max) @ Id, Vgs	Drive Voltage (Max Rds On, Min Rds On)	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	FET Type	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Package / Case

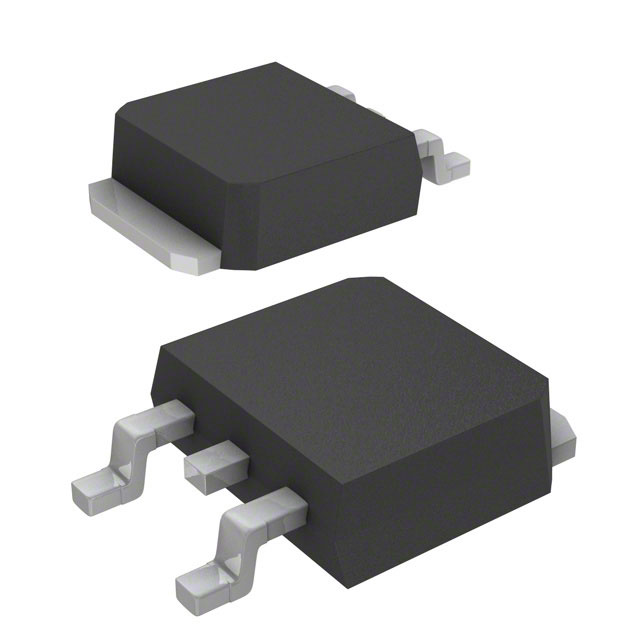

Renesas Electronics Corporation RJK5002DPD-00#J2	30 V	165 pF	MOSFET (Metal Oxide)	150 °C	MP-3A	5 Ohm	10 V	Surface Mount	6.7 nC	N-Channel	2.4 A	500 V	DPAK (2 Leads + Tab) SC-63 TO-252-3

Nch Power MOSFET 500V 2.4A 5000mohm TO-252 / DPAK

MOSFETs suitable for switching (motor drive, etc.) and load switch applications. Low on-resistance, high-speed switching, and high-robustness.
