Isolated DC/DC Converters - Through Hole
Isolated DC/DC Converters - Through Hole
| Part | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Voltage - Isolation | Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Applications | Power (Watts) | Voltage - Input (Min) [Min] | Features | Mounting Type | Package / Case | Number of Outputs | Current - Output (Max) [Max] | Efficiency | Current - Output (Max) | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

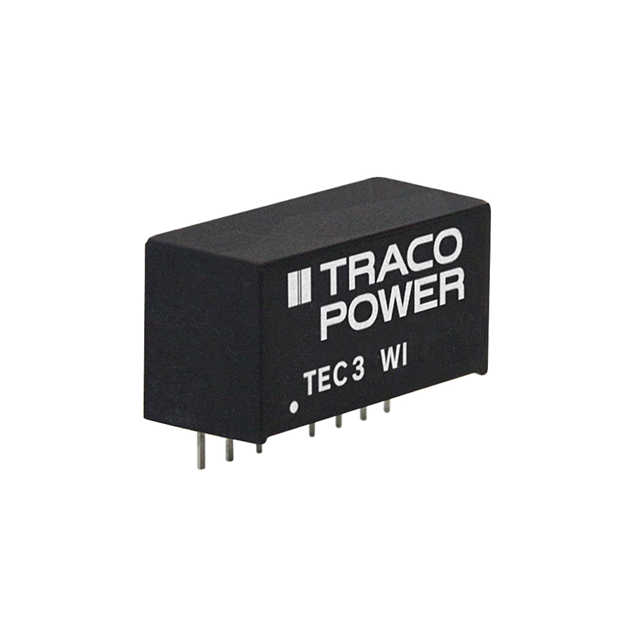

 Traco Power | 24 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 75 V | ITE (Commercial) | 3 W | 36 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 125 mA | 86 % | ||
Traco Power | 3.3 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 75 V | ITE (Commercial) | 2.3 W | 36 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 700 mA | 75 % | ||

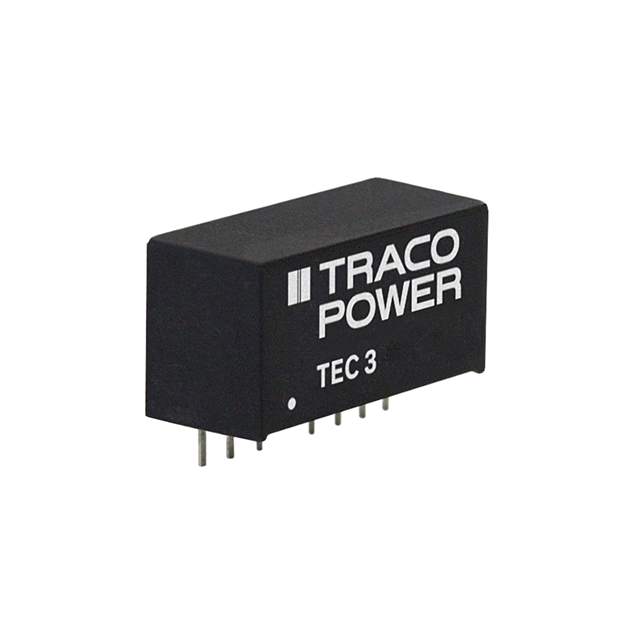

Traco Power | 12 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 13.2 V | ITE (Commercial) | 3 W | 4.5 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 2 | 125 mA | -12 V | ||
Traco Power | 5 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 18 V | ITE (Commercial) | 3 W | 9 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 2 | 0.3 A | 81 % | -5 V | |
 Traco Power | 3.3 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 18 V | ITE (Commercial) | 2.3 W | 4.5 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 700 mA | 75 % | ||
 Traco Power | 24 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 13.2 V | ITE (Commercial) | 3 W | 4.5 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 125 mA | |||
Traco Power | 5 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 36 V | ITE (Commercial) | 3 W | 9 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 2 | 0.3 A | 79 % | -5 V | |
Traco Power | 9 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 36 V | ITE (Commercial) | 3 W | 9 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 333 mA | 81 % | ||
Traco Power | 9 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 13.2 V | ITE (Commercial) | 3 W | 4.5 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 1 | 333 mA | 81 % | ||
Traco Power | 5 V | 21.8 mm | 0.86 " | 9.1 mm | 0.44 in | 11.2 mm | 0.36 in | 1.6 kV | Isolated Module | 90 °C | -40 °C | 75 V | ITE (Commercial) | 3 W | 36 V | Remote On/Off SCP | Through Hole | 8-SIP Module 7 Leads | 2 | 0.3 A | 80 % | -5 V |
