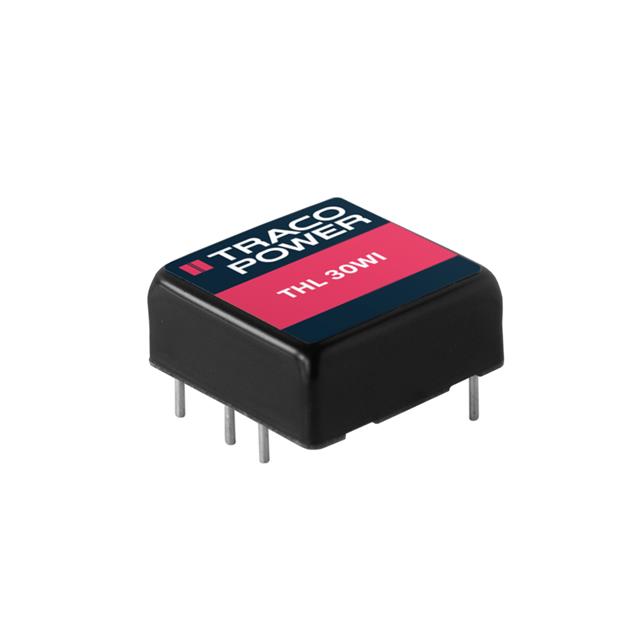

THL 30WI Series
Manufacturer: Traco Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 18-75VIN +/-12V 1250MA 1X1 METAL CASE REGULATED
| Part | Voltage - Isolation | Current - Output (Max) | Voltage - Output 2 | Package / Case | Power (Watts) | Voltage - Input (Max) [Max] | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Features | Number of Outputs | Type | Applications | Voltage - Input (Min) [Min] | Mounting Type | Standard Number | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1800 V | 1.25 A | -12 V | 6-DIP Module | 30 Watts | 75 V | 12 V | 1 " | 1 in | 25.4 mm | 10.2 mm | 0.4 " | 25.4 mm | 88 % | Adjustable Output Remote On/Off | 2 | Isolated Module | ITE (Commercial) | 18 V | Through Hole | 62368-1 | CB cURus | 80 °C | -40 C |
