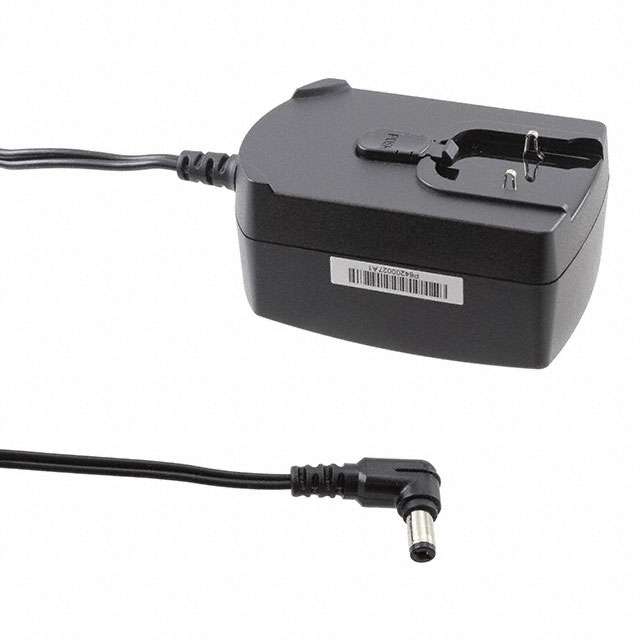

PSAA30R Series

Wall Mount AC Adapters 30W 12V 2.5A

Manufacturer: Phihong USA

Catalog

Wall Mount AC Adapters 30W 12V 2.5A

Catalog

Wall Mount AC Adapters 30W 12V 2.5A

Part	Polarization	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Power (Watts)	Voltage - Output	Output Connector [x]	Output Connector [diameter]	Output Connector	Applications	Approval Agency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Form	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Input Connector	Current - Output (Max) [Max]	No Load Power Consumption	Weight	Weight	Standard Number	Output Connector [z]
Phihong USA PSAA30R-120-R	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	12 V	10 mm	2.1 mm 5.5 mm	Barrel Plug	ITE (Commercial)	CE cULus	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2.5 A	300 mW
Phihong USA PSAA30R-240-R-CNR3	Negative Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	24 V	10 mm	1.7 mm 4 mm	Barrel Plug R/A	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	1.25 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1
Phihong USA PSAA30R-120-R-C5	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	12 V		0.7 mm 2.5 mm	Barrel Plug	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2.5 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1	10 mm
Phihong USA PSAA30R-150-R-C3	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	15 V		1.7 mm 4 mm	Barrel Plug	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1	10 mm
Phihong USA PSAA30R-240-R-C3	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	24 V		1.7 mm 4 mm	Barrel Plug	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	1.25 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1	10 mm
Phihong USA PSAA30R-240-R-CR5	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	24 V	10 mm	0.7 mm 2.5 mm	Barrel Plug R/A	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	1.25 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1
Phihong USA PSAA30R-150-R-CN2	Negative Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	15 V	10 mm	2.5 mm 5.5 mm	Barrel Plug	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1
Phihong USA PSAA30R-150-R-CNR2	Negative Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	15 V		2.5 mm 5.5 mm	Barrel Plug R/A	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1	10 mm
Phihong USA PSAA30R-150-R-CR4	Positive Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	15 V	10 mm	1.35 mm 3.5 mm	Barrel Plug R/A	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	2 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1
Phihong USA PSAA30R-240-R-CN2	Negative Center	264 VAC	90 VAC	1.5 m	59 in	30 Watts	24 V	10 mm	2.5 mm 5.5 mm	Barrel Plug	ITE (Commercial)	AS/NZS cULus IEC	39.1 mm	1.54 in	82.7 mm	55 mm	2.17 "	3.26 "	Level VI	Wall Mount	Multi-Blade (Sold Separately)	40 °C	0 °C	International	Multi-Blade	1.25 A	300 mW	150.14 g	0.331 lb	60950-1 62368-1
