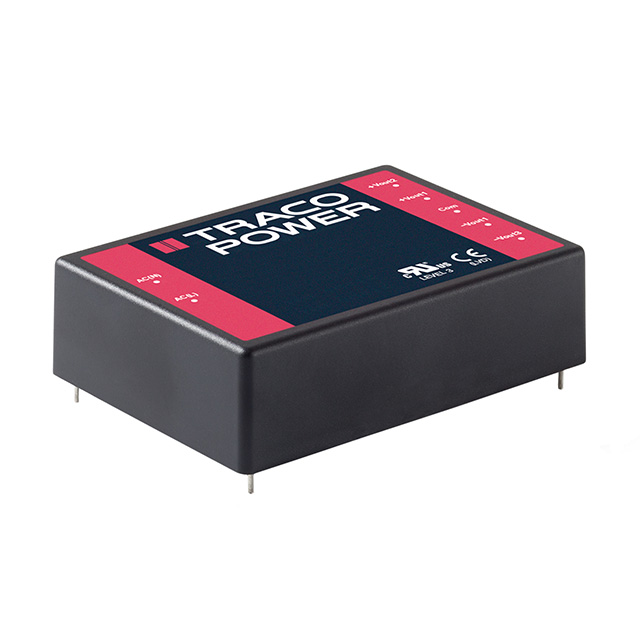

TML 40 Series

Catalog

AC/DC CONVERTER 5V +/-12V 39W

Part	Voltage - Output 1	Package / Case	Mounting Type	Efficiency	Features	Approval Agency	Voltage - Output 3	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Number of Outputs	Voltage - Output 2	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Current - Output (Max) [Max]
Traco Power TML 40512	5 V	8-DIP Module 7 Leads	Through Hole	84 %	Universal Input	CB CE cURus	-12 V	ITE (Commercial)	264 VAC 375 VDC	90 VAC 100 V	Enclosed	-40 °C	60 °C	5 A 600 mA	3	12 V	39 W	89.5 mm	2.52 in	3.52 in	0.98 in	64.1 mm	25 mm
Traco Power TML 40112	12 V	8-DIP Module 5 Leads	Through Hole	84 %	Universal Input	CB CE cURus		ITE (Commercial)	264 VAC 375 VDC	90 VAC 100 V	Enclosed	-40 °C	60 °C		1		40 W	89.5 mm	2.52 in	3.52 in	0.98 in	64.1 mm	25 mm	3.333 A
