RMCP0402F Series

Catalog

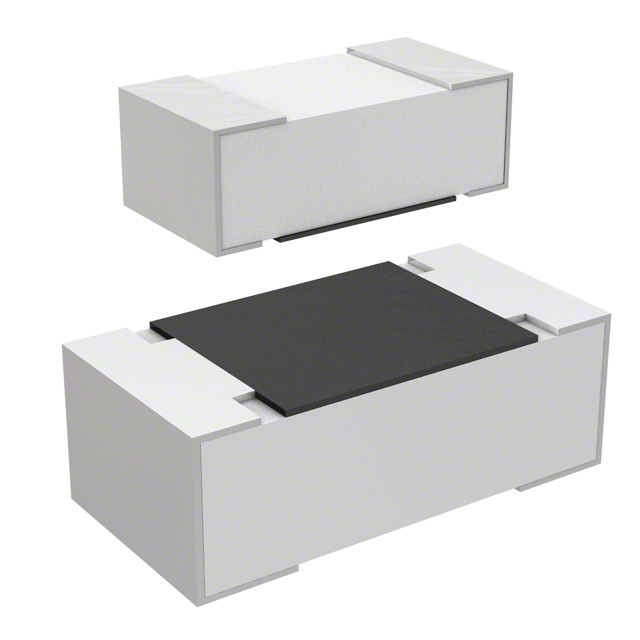

RES 365K OHM 1% 1/8W 0402

...

Part	Ratings	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max)	Number of Terminations [custom]	Composition	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Power (Watts)	Resistance	Features	Tolerance	Package / Case
Stackpole Electronics Inc RMCP0402FT365K	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	365 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT28K7	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	28.7 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT806K	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	806 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT63R4	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	63.4 Ohms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT1K62	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	1.62 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT22K6	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	22600 Ohms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT422R	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	422 Ohms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT3R00	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	200 ppm/C	155 C	-55 C	0.125 W	0.125 W	3 Ohms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT4K22	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	4.22 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
Stackpole Electronics Inc RMCP0402FT10K2	AEC-Q200	0402	0.016 in	0.4 mm	2	Thick Film	0.02 in	0.5 mm	0.039 "	1 mm	100 ppm/°C	155 C	-55 C	0.125 W	0.125 W	10.2 kOhms	Automotive AEC-Q200	1 %	0402 (1005 Metric)
