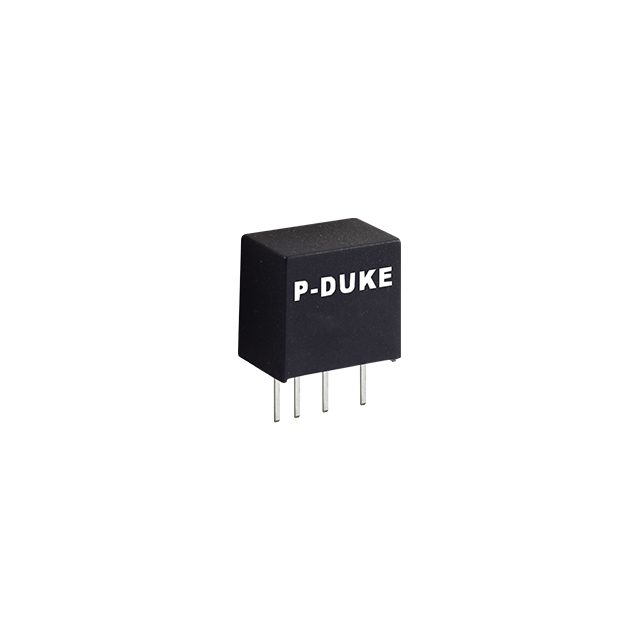

UDH01 Series
Manufacturer: P-DUKE Technology
Beta
⌘K
DC DC CONVERTER 5V 1W
| Part | Number of Outputs | Voltage - Input (Max) [Max] | Voltage - Output 1 | Approval Agency | Package / Case | Standard Number | Voltage - Isolation | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Applications | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 P-DUKE Technology | 1 | 36 V | 5 V | CE | 5-SIP Module 4 Leads | 62368-1 | 1.6 kV | Through Hole | 0.47 in | 0.3 " | 0.43 in | 11 mm | 7.7 mm | 11.9 mm | 18 V | 81 % | 105 C | -40 °C | 200 mA | ITE (Commercial) | Isolated Module |
P-DUKE Technology | 1 | 13.2 V | 5 V | CE | 5-SIP Module 4 Leads | 1.6 kV | Through Hole | 0.47 in | 0.3 " | 0.43 in | 11 mm | 7.7 mm | 11.9 mm | 4.5 V | 79 % | 105 C | -40 °C | 200 mA | ITE (Commercial) | Isolated Module | |
P-DUKE Technology | 1 | 75 V | 5 V | CE | 5-SIP Module 4 Leads | 62368-1 | 1.6 kV | Through Hole | 0.47 in | 0.3 " | 0.43 in | 11 mm | 7.7 mm | 11.9 mm | 36 V | 78 % | 105 C | -40 °C | 200 mA | ITE (Commercial) | Isolated Module |
