DF1BD Series

Catalog

CONN HEADER VERT 4POS 2.5MM

Part	Shrouding	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Termination	Contact Finish - Post	Contact Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Connector Type	Mated Stacking Heights	Contact Length - Post	Contact Length - Post	Features	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions	Style	Number of Rows	Contact Shape

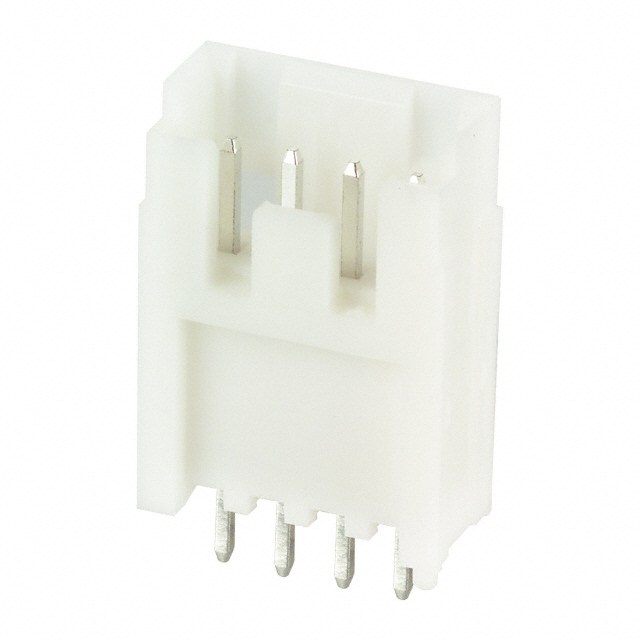

Hirose Electric USA, Inc. DF1BD-4P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	4	Board to Cable/Wire	1	Square

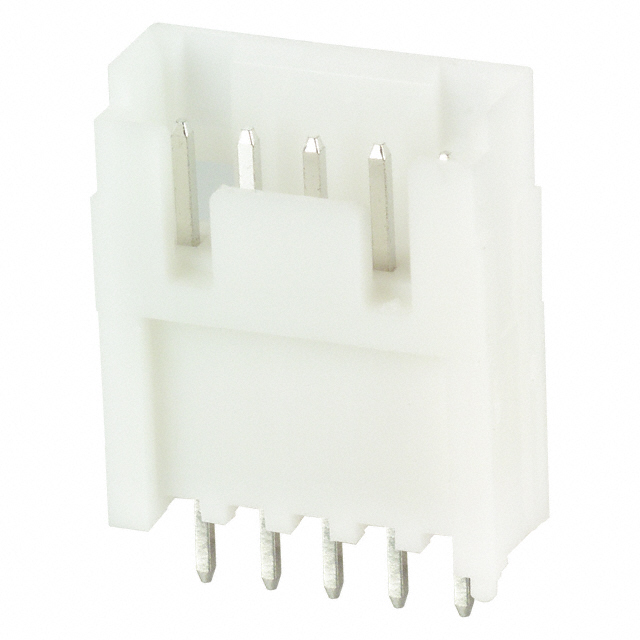

Hirose Electric USA, Inc. DF1BD-5P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in		Board to Cable/Wire	1	Square
Hirose Electric USA, Inc. DF1BD-2P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	2	Board to Cable/Wire	1	Square

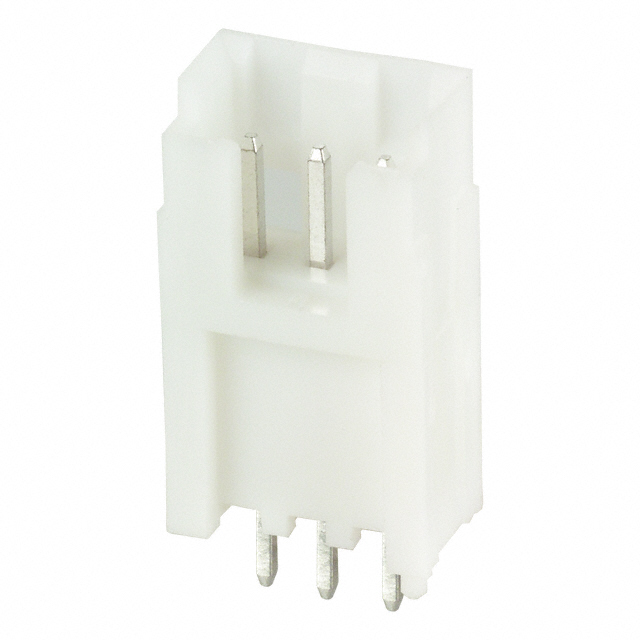

Hirose Electric USA, Inc. DF1BD-3P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in		Board to Cable/Wire	1	Square

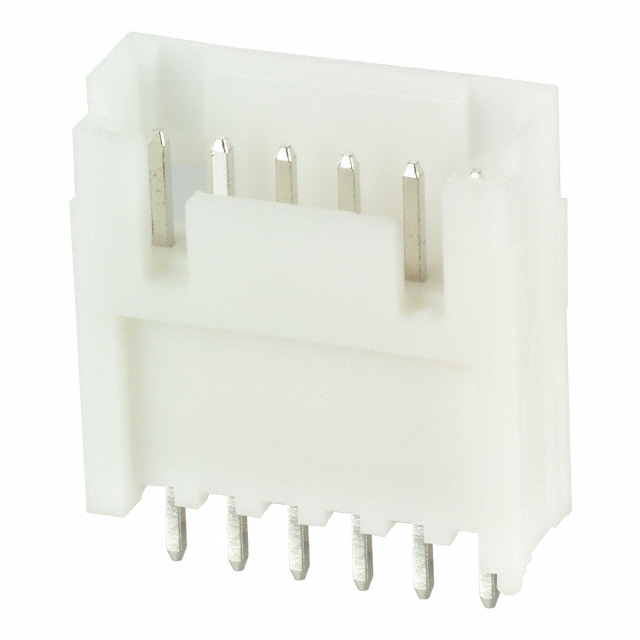

Hirose Electric USA, Inc. DF1BD-6P-2.5DSA(05)	Shrouded - 4 Wall	250 VDC	1 µm	39.4 µin	Push-Pull	Solder	Tin	Male Pin	White	-35 °C	85 °C	Through Hole	UL94 V-0	All	0.177 in	4.5 mm	0.689 in	17.5 mm	Header	14 mm	0.118 in	3 mm	Board Guide Keying Slot	Brass	Nylon Polyamide (PA)	2.5 mm	0.098 in	6	Board to Cable/Wire	1	Square
