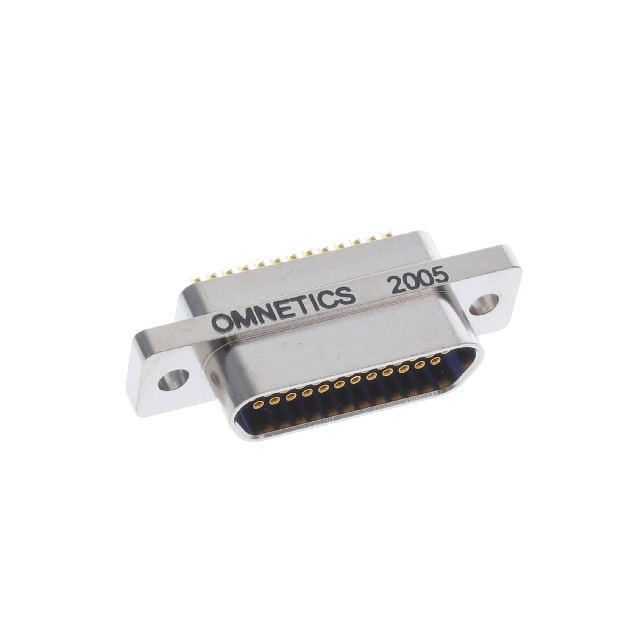

MMDS-025 Series
Manufacturer: Omnetics
Beta
⌘K
CABLE ASSY D-MIC-D 25P 457.2MM
| Part | Number of Positions | Contact Finish | Length [x] | Length [x] | Color | 1st Connector | 2nd Connector | Type | Shielding | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Form | Number of Rows [custom] | Current Rating (Amps) | Connector Style | Shell Material, Finish | Connector Type | Contact Type | Primary Material | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | 25 | Gold | 457.2 mm | 1.5 ft | Individual Multiple | Receptacle Female Sockets | Individual Wire Leads | D-Type Micro-D | Unshielded | 50 µin | 1.27 µm | ||||||||||||||||
 Omnetics | 25 | Gold | 50 µin | 1.27 µm | Copper Alloy | -55 C | 125 °C | Thermoplastic | Stamped | 2 | 3 A | D-Type Micro-D | Aluminum Electroless Nickel Plated | Receptacle Female Sockets | Signal | Metal | Free Hanging (In-Line) | 0.05 | 0.05 | Housing/Shell (Unthreaded) |
