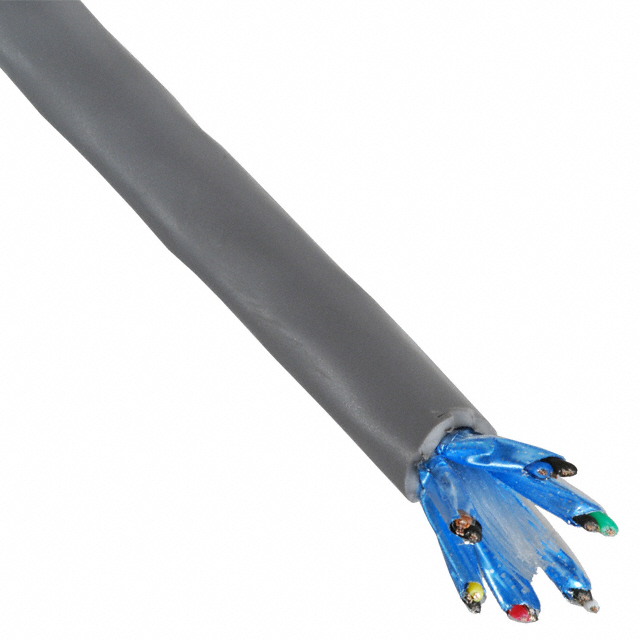

C6041 Series

Catalog

MULTI-PAIR 12CON 22AWG GRAY 100'

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Shield Coverage	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length	Usage	Features	Voltage	Conductor Material	Shield Material	Shield Type	Conductor Insulation	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors
Prysmian Group C6041A.41.10	Gray	30 AWG	7	100 ft	30.5 m	100 %	Multi-Pair	80 °C	-20 ░C	0.381 in	9.68 mm	304.8 m	1000 ft	Computer	Drain Wire	300 VDC	Copper Tinned	Flexfoil®	Foil	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	22 AWG	0.813 mm	0.032 in	12
Prysmian Group C6041A.41.10	Gray	30 AWG	7	100 ft	30.5 m		Multi-Pair	80 °C	-20 ░C	0.381 in	9.68 mm	15.24 m 304.8 m	50 ft 1000 ft	Computer	Drain Wire	300 VDC	Copper Tinned		Foil	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	22 AWG	0.813 mm	0.032 in	12
Prysmian Group C6041A.38.10	Gray	30 AWG	7				Multi-Pair	80 °C	-20 ░C	0.381 in	9.68 mm	152.4 m	500 ft	Computer	Drain Wire	300 VDC	Copper Tinned		Foil	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	22 AWG	0.813 mm	0.032 in	12
Prysmian Group C6041A.38.10	Gray	30 AWG	7			100 %	Multi-Pair	80 °C	-20 ░C	0.381 in	9.68 mm	152.4 m	500 ft	Computer	Drain Wire	300 VDC	Copper Tinned	Flexfoil®	Foil	Polyethylene (PE)	Poly-Vinyl Chloride (PVC)	22 AWG	0.813 mm	0.032 in	12
