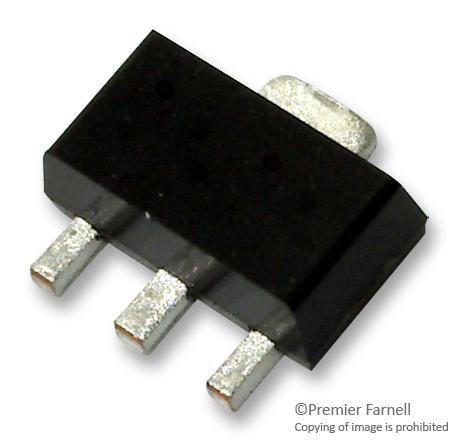

2SA2013 Series

Bipolar Transistor, -50V, -4A, Low VCE(sat), (PNP)NPN Single PCP

Catalog

Bipolar Transistor, -50V, -4A, Low VCE(sat), (PNP)NPN Single PCP

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Supplier Device Package	Mounting Type	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Current - Collector (Ic) (Max) [Max]	Operating Temperature	Frequency - Transition	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Transistor Type
ON Semiconductor 2SA2013-TD-E	200	3.5 W	PCP	Surface Mount	1 µA	340 mV	4 A	150 °C	400 MHz	TO-243AA	50 V	PNP

Bipolar Transistor, -50V, -4A, Low VCE(sat), (PNP)NPN Single PCP

• Adoption of FBET and MBIT processes

• Large current capacity

• Low collector-to-emitter saturation voltage

• High-speed switching

• Ultrasmall package facilitales miniaturization in end products

• High allowable power dissipation

2SA2013 is a Bipolar Transistor, -50V, -4A, Low VCE(sat), (PNP)NPN Single PCP for DC-DC Converter Applications.
