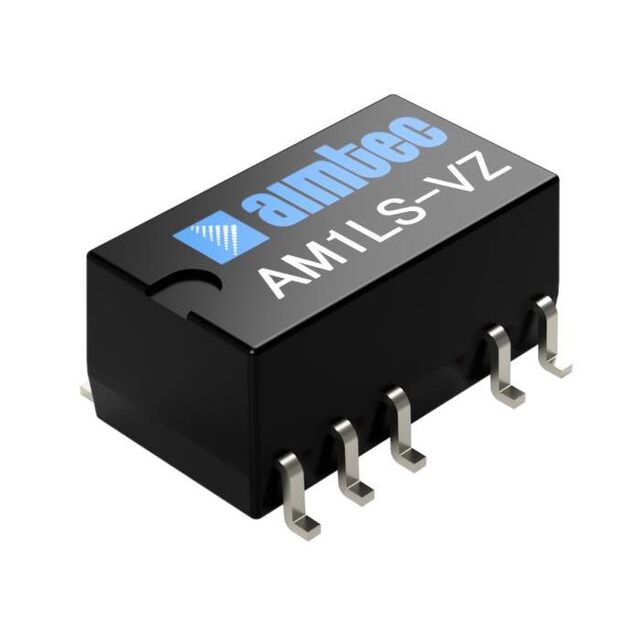

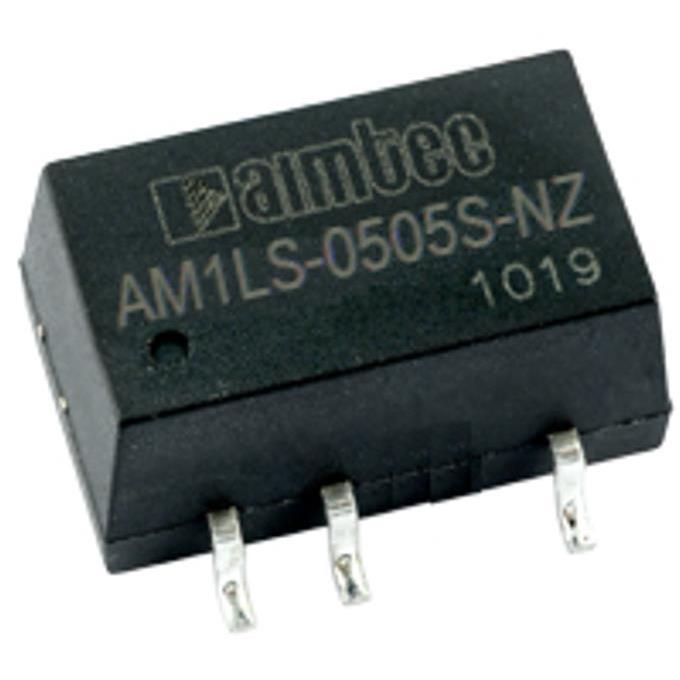

AM1LS Series
Manufacturer: aimtec
Beta
⌘K
DC DC CONVERTER 3.3V 1W
| Part | Voltage - Isolation | Voltage - Input (Max) [Max] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Current - Output (Max) [Max] | Efficiency | Approval Agency | Number of Outputs | Voltage - Input (Min) [Min] | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Mounting Type | Applications | Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Current - Output (Max) [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 aimtec | 3000 V | 5.5 V | SMD | -40 C | 105 ░C | 303 mA | 74 % | cULus cURus | 1 | 4.5 V | 3.3 V | 0.5 " | 0.44 " | 12.7 mm | 0.28 " | 7.3 mm | 11.2 mm | Surface Mount | ITE (Commercial) | Isolated Module | |||||||||||||
 aimtec | 1.5 kV | 26.4 V | 8-SMD Module 5 Leads | -40 °C | 105 C | 111 mA | 80 % | 1 | 21.6 V | 9 V | 12.7 mm | 0.29 " | 0.33 in | Surface Mount | ITE (Commercial) | Isolated Module | 7.3 mm | 8.3 mm | 12.7 mm | 999 mW | |||||||||||||
aimtec | 1.5 kV | 5.5 V | SMD | -40 C | 105 ░C | 42 mA | 80 % | cULus cURus | 1 | 4.5 V | 24 V | 0.52 in | 0.33 " | 13.2 mm | 0.29 in | 7.3 mm | 8.5 mm | Surface Mount | ITE (Commercial) | Isolated Module | |||||||||||||
 aimtec | 3000 V | 5.5 V | SMD | -40 C | 105 ░C | 2 | 4.5 V | 0.6 " | 0.44 " | 15.2 mm | 0.28 " | 7.3 mm | 11.4 mm | Surface Mount | ITE (Commercial) | Isolated Module | 5 V | -5 V | -5 V | 100 mA | 100 mA | ||||||||||||
aimtec | 1.5 kV | 5.5 V | SMD | -40 C | 105 ░C | 200 mA | cULus cURus | 1 | 4.5 V | 5 V | 0.52 in | 0.33 " | 13.2 mm | 0.29 in | 7.3 mm | 8.5 mm | Surface Mount | ITE (Commercial) | Isolated Module | ||||||||||||||
aimtec | 1.5 kV | 3.63 V | SMD | -40 C | 105 ░C | 200 mA | 74 % | cULus cURus | 1 | 2.97 V | 5 V | 0.5 " | 0.44 " | 12.7 mm | 0.28 " | 7.3 mm | 11.2 mm | Surface Mount | ITE (Commercial) | Isolated Module | |||||||||||||
 aimtec | 3000 V | 5.5 V | 10-SMD Module 6 Leads | -40 °C | 105 C | 2 | 4.5 V | 5 V | 0.6 " | 0.33 " | 15.2 mm | 0.29 in | 7.3 mm | 8.5 mm | Surface Mount | ITE (Commercial) | Isolated Module | -5 V | 100 mA | 100 mA | |||||||||||||
aimtec | 1.5 kV | 5.5 V | SMD | -40 C | 105 ░C | 303 mA | 74 % | cULus cURus | 1 | 4.5 V | 3.3 V | 0.52 in | 0.33 " | 13.2 mm | 0.29 in | 7.3 mm | 8.5 mm | Surface Mount | ITE (Commercial) | Isolated Module | |||||||||||||
aimtec | 3000 V | 5.5 V | SMD | -40 C | 105 ░C | 151 mA | 74 % | 2 | 4.5 V | 0.6 " | 0.44 " | 15.2 mm | 0.28 " | 7.3 mm | 11.4 mm | Surface Mount | ITE (Commercial) | Isolated Module | -3.3 V | 3.3 V | -3.3 V | 151 mA | |||||||||||
 aimtec | 1.5 kV | 5.5 V | 8-SMD Module 5 Leads | -40 °C | 105 C | 200 mA | 1 | 4.5 V | 5 V | 0.52 in | 0.34 in | 13.2 mm | 0.29 in | 7.3 mm | 8.5 mm | Surface Mount | ITE (Commercial) | Isolated Module | SMD |
