A3-28DA Series

Catalog

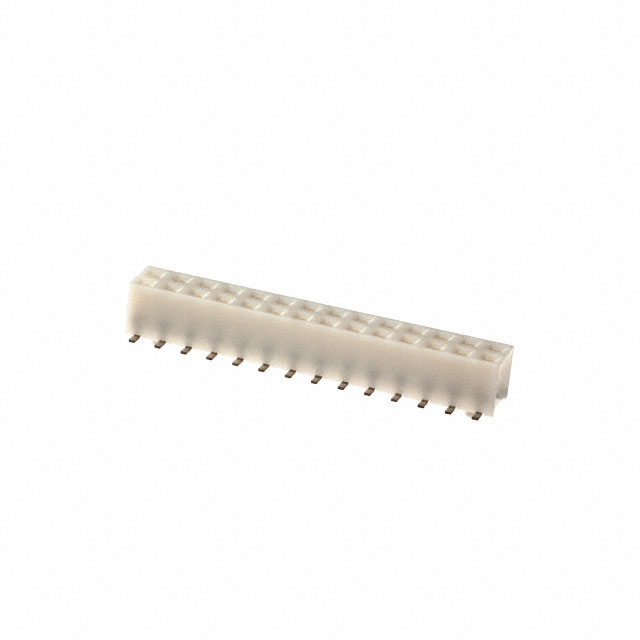

CONN RCPT 28POS 0.079 GOLD SMD

Part	Contact Shape	Applications	Insulation Material	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Number of Rows [custom]	Voltage Rating	Contact Type	Insulation Height	Insulation Height	Insulation Color	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Termination	Contact Finish - Mating	Mounting Type	Fastening Type	Mated Stacking Heights
Hirose Electric Co Ltd A3-28DA-2SV(71)	Square	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Phosphor Bronze	39.4 çin	1 çm	Receptacle	-55 C	85 °C	All	2 mm	0.079 in	0.079 "	2 mm	UL94 V-0	Tin	2	200 VAC	Female Socket	0.165 in	4.2 mm	Brown	Board to Board Cable	8 µin	0.203 µm	28	Solder	Gold	Surface Mount	Push-Pull	5.1 mm 6 mm
Hirose Electric Co Ltd A3-28DA-2SV	Square	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Phosphor Bronze	39.4 çin	1 çm	Receptacle	-55 C	85 °C	All	2 mm	0.079 in	0.079 "	2 mm	UL94 V-0	Tin	2	200 VAC	Female Socket	0.165 in	4.2 mm	Brown	Board to Board Cable	8 µin	0.203 µm	28	Solder	Gold	Surface Mount	Push-Pull	5.1 mm 6 mm
