93C86C Series

16Kb 5V Microwire (3-wire) Serial EEPROM with Hardware Selectable Word Size

Catalog

16Kb 5V Microwire (3-wire) Serial EEPROM with Hardware Selectable Word Size

Part	Package / Case	Package / Case	Package / Case	Memory Format	Operating Temperature [Min]	Operating Temperature [Max]	Clock Frequency	Mounting Type	Memory Size	Voltage - Supply [Min]	Voltage - Supply [Max]	Memory Organization	Supplier Device Package	Memory Type	Memory Interface	Technology	Write Cycle Time - Word, Page	Package / Case [custom]	Package / Case [custom]	Package / Case [y]	Package / Case [x]
Microchip Technology 93C86A-E/P	0.3 in	8-DIP	7.62 mm	EEPROM	-40 °C	125 °C	3 MHz	Through Hole	16 Kbit	4.5 V	5.5 V	2K x 8	8-PDIP	Non-Volatile	Microwire	EEPROM	2 ms
Microchip Technology 93C86A-E/ST		8-TSSOP		EEPROM	-40 °C	125 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	8-TSSOP	Non-Volatile	Microwire	EEPROM	2 ms	0.173 "	4.4 mm
Microchip Technology 93C86C-I/MS	3 mm	8-MSOP 8-TSSOP		EEPROM	-40 °C	85 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	1K x 16 2K x 8	8-MSOP	Non-Volatile	Microwire	EEPROM	2 ms	0.118 in
Microchip Technology 93C86AT-E/OT		SOT-23-6		EEPROM	-40 °C	125 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	SOT-23-6	Non-Volatile	Microwire	EEPROM	2 ms
Microchip Technology 93C86AT-I/SN		8-SOIC		EEPROM	-40 °C	85 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	8-SOIC	Non-Volatile	Microwire	EEPROM	2 ms			3.9 mm	0.154 in
Microchip Technology 93C86A-E/SN		8-SOIC		EEPROM	-40 °C	125 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	8-SOIC	Non-Volatile	Microwire	EEPROM	2 ms			3.9 mm	0.154 in
Microchip Technology 93C86A-I/ST		8-TSSOP		EEPROM	-40 °C	85 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	8-TSSOP	Non-Volatile	Microwire	EEPROM	2 ms	0.173 "	4.4 mm
Microchip Technology 93C86BT-I/OT		SOT-23-6		EEPROM	-40 °C	85 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	1K x 16	SOT-23-6	Non-Volatile	Microwire	EEPROM	2 ms
Microchip Technology 93C86A-I/P	0.3 in	8-DIP	7.62 mm	EEPROM	-40 °C	85 °C	3 MHz	Through Hole	16 Kbit	4.5 V	5.5 V	2K x 8	8-PDIP	Non-Volatile	Microwire	EEPROM	2 ms
Microchip Technology 93C86AT-I/OT		SOT-23-6		EEPROM	-40 °C	85 °C	3 MHz	Surface Mount	16 Kbit	4.5 V	5.5 V	2K x 8	SOT-23-6	Non-Volatile	Microwire	EEPROM	2 ms

Catalog

16Kb 5V Microwire (3-wire) Serial EEPROM with Hardware Selectable Word Size

Key Features

• * Industry Standard Microwire Serial I/O

• * Up to 3 MHz clock compatibility

• * ORG Pin to select word size

• * Automatic Erase All (ERAL) Before Write All (WRAL)

• * Self-Timed Erase and Write Cycles (2 ms max.)

• * Read current 100 uA (Typ), 1 mA (Max)

• * Write current 500 uA (Typ), 3 mA (Max)

• * Standby current 1 uA (Max at -40 to 85°C)

• * Software Write-Protection

• * More than 1 million erase/write cycles

• * Data retention > 200 years

• * Grade 1 Temperature Range: -40°C to 125°C

• * Qualified for Automotive Applications

• * Factory Programming Available

• * Available in PDIP-8, SOIC-8, MSOP-8, 2x3 DFN-8 and TSSOP-8

Description

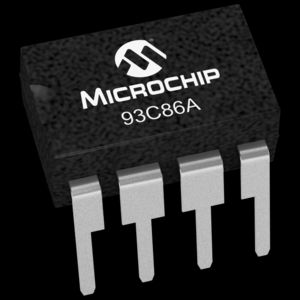

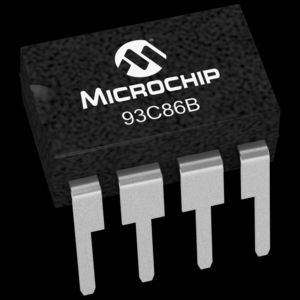

The Microchip 93C86A device is a 16Kb Microwire (3-wire) Serial EEPROM with dedicated 8-bit memory organization and a voltage operation range of 4.5 - 5.5V. Also available are the 93C86B for dedicated 16-bit memory organization and the 93C86C for hardware selectable word size using the ORG pin. The 93C86A is optimized for use in consumer, industrial, and automotive applications where reliable and dependable nonvolatile memory storage is essential. The device is available in a variety of Pb-free packages including SOT-23, PDIP, SOIC, MSOP and TSSOP.
