A15037 Series

Catalog

THERM PAD 19.05MMX12.7MM 1=1000

Part	Type	Outline [x]	Outline [y]	Material	Shape	Color	Usage	Backing, Carrier	Thickness	Thickness	Shelf Life	Shelf Life Start	Thermal Resistivity	Thermal Conductivity	Backing, Carrier [custom]	Backing, Carrier [custom]	Thickness

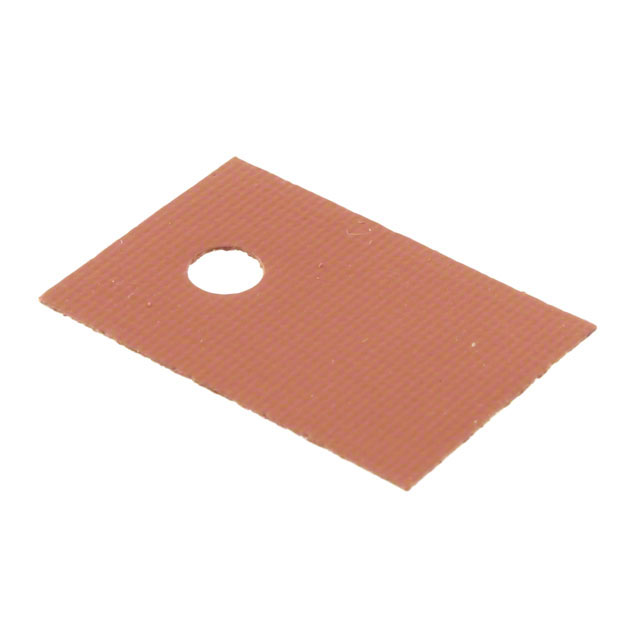

Laird Technologies - Thermal Materials A15037-002	Die-Cut Pad Sheet	19.05 mm	12.7 mm	Fiberglass Ceramic Filled	Rectangular	Brown	TO-220	Silicon Rubber	0.229 mm	0.009 in

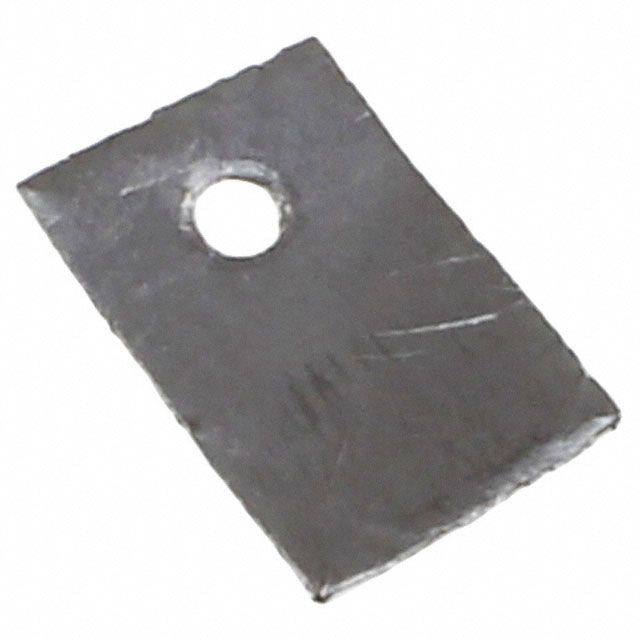

Laird Technologies - Thermal Materials A15037-112	Graphite-Pad Sheet	19.05 mm	12.7 mm	Graphite	Rectangular	Gray	TO-220		5 mils	0.005 in	24 Months	Date of Shipment	0.07 °C/W	5 W/m-K

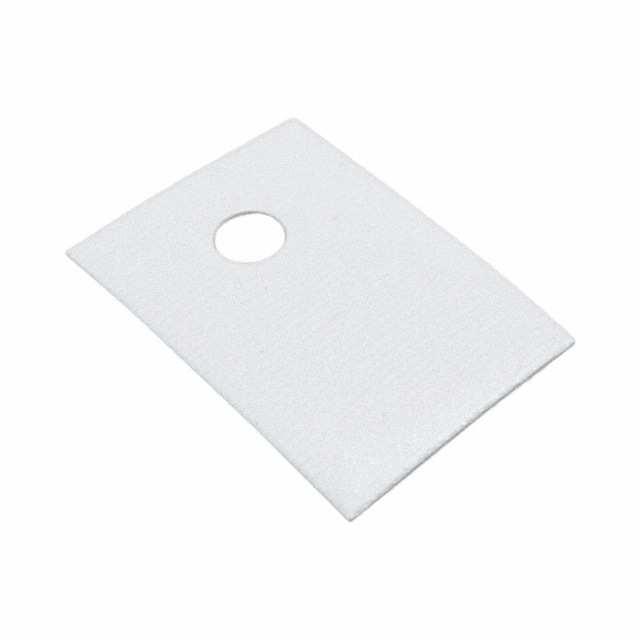

Laird Technologies - Thermal Materials A15037-004	Die-Cut Pad Sheet	19.05 mm	12.7 mm		Rectangular	White	TO-220		10 mils		24 Months	Date of Certification		5 W/m-K	Fiberglass	Fiberglass	0.01 in

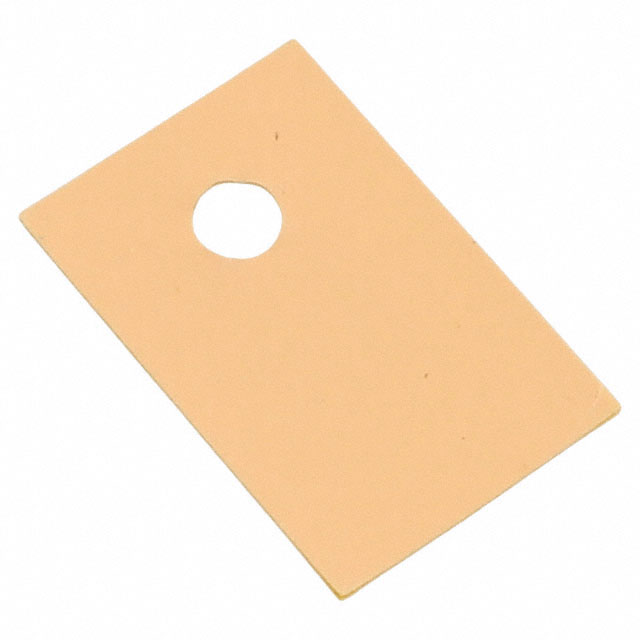

Laird Technologies - Thermal Materials A15037-003	Die-Cut Pad Sheet	19.05 mm	12.7 mm	Polyimide Silicone Rubber Coated	Rectangular	Tan	TO-220		0.152 mm	0.006 in	24 Months	Date of Certification

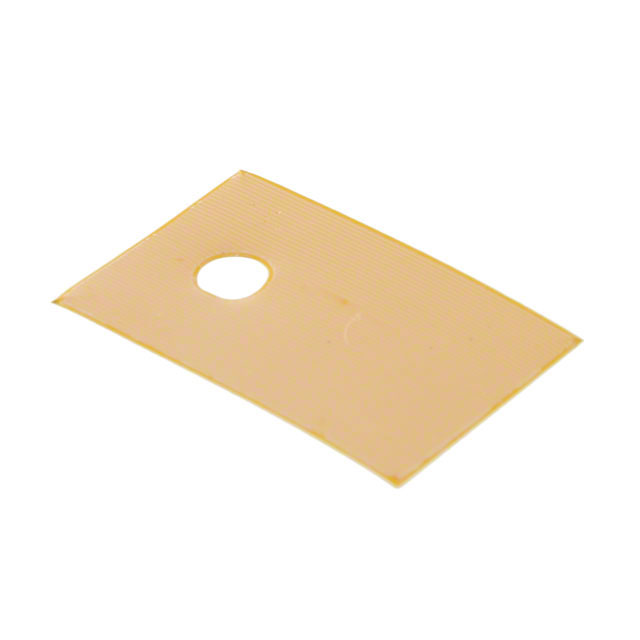

Laird Technologies - Thermal Materials A15037-005	Insulator Pad Sheet	19.05 mm	12.7 mm	Polyimide Ceramic Filled	Rectangular	Amber	TO-220		0.076 mm	0.003 "
Laird Technologies - Thermal Materials A15037-101						Brown			5 mils	0.005 in
