M2S025TS Series

Low Density Devices with hard ARM Cortex-M3

Catalog

Low Density Devices with hard ARM Cortex-M3

Part	Primary Attributes	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Speed	Flash Size	Architecture	Core Processor	Peripherals	RAM Size	Connectivity	Package / Case	Number of I/O

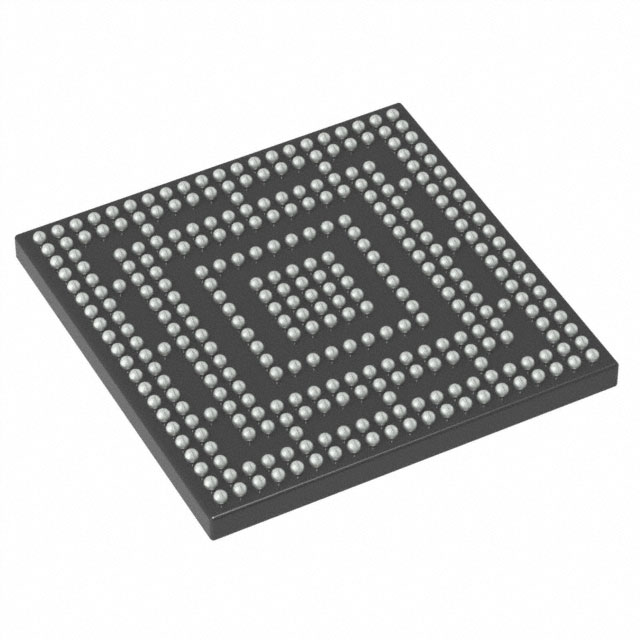

Microchip Technology M2S025T-1FCS325	25K	0 °C	85 °C	325-FCBGA (11x11)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	325-TFBGA FCBGA	180
Microchip Technology M2S025T-FG484I	25K	-40 C	100 °C	484-FPBGA (23x23)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	484-BGA	267 I/O
Microchip Technology M2S025-1FCS325I	25K	-40 C	100 °C	325-FCBGA (11x11)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	325-TFBGA FCBGA	180
Microchip Technology M2S025T-1FCSG158I	25K	-40 C	100 °C	158-FCBGA	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	158-BGA FCBGA
Microchip Technology M2S025T-VFG256I	25K	-40 C	100 °C	256-FPBGA (17x17)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	256-LBGA	138
Microchip Technology M2S025TS-1VF400	25K	0 °C	85 °C	400-VFBGA	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	400-LFBGA	207
Microchip Technology M2S025TS-1VFG400	25K	0 °C	85 °C	400-VFBGA	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	400-LFBGA	207
Microchip Technology M2S025-VFG256I	25K	-40 C	100 °C	256-FPBGA (17x17)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	256-LBGA	138
Microchip Technology M2S025-1FG484	25K	0 °C	85 °C	484-FPBGA (23x23)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	484-BGA	267 I/O
Microchip Technology M2S025-FCS325I	25K	-40 C	100 °C	325-FCBGA (11x11)	166 MHz	256 KB	MCU FPGA	ARM® Cortex®-M3	DDR PCIe SERDES	64 KB	CANbus Ethernet I2C SPI UART/USART USB	325-TFBGA FCBGA	180

Catalog

Low Density Devices with hard ARM Cortex-M3

Key Features

• Microcontroller Subsystem* Hard 166-MHz 32-Bit ARM Cortex-M3 based SoC FPGA

• * 1.25 DMIPS/MHz

• * 256 KB embedded nonvolatile memory (eNVM)

• * Triple-speed Ethernet (TSE) 10/100/1000 Mbps MAC

• * USB 2.0 high speed on-the-go (OTG) controller

• * 2.0B-compliant CAN controller

• * 64 KB embedded SRAM (eSRAM)

• * Two SPI ports, two I2C ports, and multi-mode UARTs

•

• FPGA Fabric* 27.6K logic elements

• * 34 Math blocks (18x18)

• * AES256, SHA256, RNG

• * 6 PLLs and CCCs

• * 592K bits RAM

• * DDR Controller - LPDDR/DDR2/3

• * 4 SERDES Lanes

• * 1 PCIe End Points

• * Offers design security

• * Temperature - Commercial, Industrial, Automotive (T2), Military

Description

These flash FPGA devices are ideal for general purpose functions such as Gigabit Ethernet or dual PCI Express control planes, bridging functions, input/output (I/O) expansion and conversion, video/image processing, system management and secure connectivity. Microchip FPGAs are used by customers in Communications, Industrial, Medical, Defense, and Aviation markets. More Resources in Low Density Devices • ARM Cortex-M3 Processor with embedded flash • Comprehensive microcontroller subsystem • PCIe Gen2 support With Clear Advantages • Lowest Power • Reduce total power by ~20-40% • 70mW per 5G SERDES (PCIe Gen2) • Proven Security • Protection from Overbuilding and Cloning • Secure Boot for FPGA & Processors • Exceptional Reliability • SEU immune Zero FIT Flash FPGA Configuration • Reliability safety critical and mission critical systems
