ADF7024 Series

Catalog

EASY TO USE, LOW POWER, SUB GHZ, ISM/SRD, FSK/GFSK, TRANSCEIVER IC

Part	Data Rate (Max)	Supplier Device Package	Frequency [Max]	Frequency [Min]	Mounting Type	Modulation	GPIO	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	Memory Size	Power - Output	Current - Receiving	Sensitivity	Current - Transmitting [Max]	Current - Transmitting [Min]	Package / Case	RF Family/Standard	Type	Voltage - Supply [Min]	Voltage - Supply [Max]	For Use With/Related Products	Supplied Contents
Analog Devices ADF7024BCPZ	300 kbps	32-LFCSP (5x5)	435 MHz 928 MHz	431 MHz 862 MHz	Surface Mount	FHSS FSK GFSK	6	85 °C	-40 °C	SPI	240 B	13.5 dBm	12.8 mA	-111 dBm	32.1 mA	8.7 mA	32-WFQFN Exposed Pad CSP	General ISM < 1GHz	TxRx + MCU	2.2 V	3.6 V
Analog Devices ADF7024BCPZ-RL	300 kbps	32-LFCSP (5x5)	435 MHz 928 MHz	431 MHz 862 MHz	Surface Mount	FHSS FSK GFSK	6	85 °C	-40 °C	SPI	240 B	13.5 dBm	12.8 mA	-111 dBm	32.1 mA	8.7 mA	32-WFQFN Exposed Pad CSP	General ISM < 1GHz	TxRx + MCU	2.2 V	3.6 V

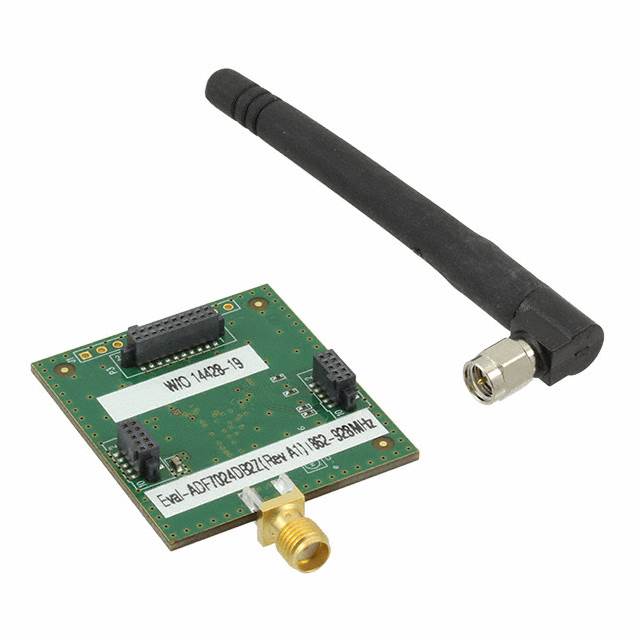

Analog Devices EVAL-ADF7024DB2Z			928 MHz	862 MHz															Transceiver			ADF7024	Board(s)
