ADA4853-2 Series

Low Power, Rail-to-Rail Output, Video Op Amps with Ultralow Power

Catalog

Low Power, Rail-to-Rail Output, Video Op Amps with Ultralow Power

Part	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Slew Rate	Package / Case	Supplier Device Package	Applications	Output Type	Mounting Type	Current - Supply	Current - Output / Channel [custom]	-3db Bandwidth	Number of Circuits	Package / Case [custom]	Package / Case [custom]	Channels per IC	Amplifier Type	Supplied Contents	Board Type
Analog Devices ADA4853-1AKSZ-R7	5 V	2.65 V	120 V/µs	6-TSSOP SC-88 SOT-363	SC-70-6	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	1
Analog Devices ADA4853-2YCPZ-RL7	5 V	2.65 V	120 V/µs	16-WFQFN Exposed Pad CSP	16-LFCSP-WQ (3x3)	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	2
Analog Devices ADA4853-3YRUZ-R7	5 V	2.65 V	120 V/µs	14-TSSOP	14-TSSOP	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	3	0.173 "	4.4 mm

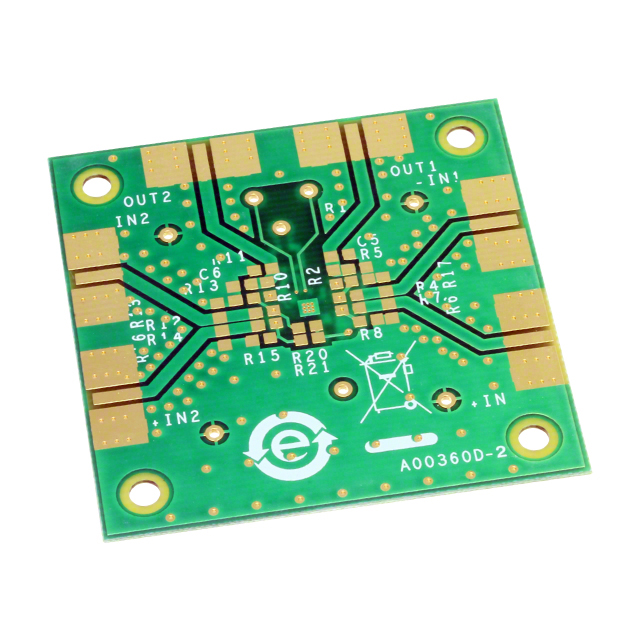

Analog Devices ADA4853-2YCP-EBZ															2 - Dual	Video	Board(s)	Bare (Unpopulated)
Analog Devices ADA4853-1AKSZ-R2	5 V	2.65 V	120 V/µs	6-TSSOP SC-88 SOT-363	SC-70-6	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	1
Analog Devices ADA4853-2YCPZ-RL	5 V	2.65 V	120 V/µs	16-WFQFN Exposed Pad CSP	16-LFCSP-WQ (3x3)	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	2
Analog Devices ADA4853-3YRUZ	5 V	2.65 V	120 V/µs	14-TSSOP	14-TSSOP	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	3	0.173 "	4.4 mm
Analog Devices ADA4853-1AKSZ-RL	5 V	2.65 V	120 V/µs	6-TSSOP SC-88 SOT-363	SC-70-6	Voltage Feedback	Rail-to-Rail	Surface Mount	1.4 mA	160 mA	100 MHz	1

Catalog

Low Power, Rail-to-Rail Output, Video Op Amps with Ultralow Power

Key Features

• Ultralow power-down current: 0.1 μA

• Low quiescent current: 1.4 mA/amplifier

• Ideal for standard definition video

• High speed100 MHz, −3 dB bandwidth120 V/μs slew rate

• 0.5 dB flatness: 22 MHz

• Differential gain: 0.20%

• Differential phase: 0.10°

• Single-supply operation

• Rail-to-rail outputOutput swings to within 200 mV of either rail

• Low voltage offset: 1 mV

• Wide supply range: 2.65 V to 5 V

Description

The ADA4853-1/ADA4853-2/ADA4853-3 are low power, low cost, high speed, rail-to-rail output op amps with ultralow power disables that are ideal for portable consumer electronics. Despite their low price, the ADA4853-1/ADA4853-2/ADA4853-3 provide excellent overall performance and versatility. The 100 MHz, −3 dB bandwidth, and 120 V/μs slew rate make these amplifiers well-suited for many general-purpose, high speed applications.The ADA4853-1/ADA4853-2/ADA4853-3 voltage feedback op amps are designed to operate at supply voltages as low as 2.65 V and up to 5 V using only 1.4 mA of supply current per amplifier. To further reduce power consumption, the amplifiers are equipped with a power-down mode that lowers the supply current to less than 1.5 μA maximum, making them ideal in battery-powered applications.The ADA4853-1/ADA4853-2/ADA4853-3 provide users with a true single-supply capability, allowing input signals to extend 200 mV below the negative rail and to within 1.2 V of the positive rail. On the output, the amplifiers can swing within 200 mV of either supply rail.With their combination of low price, excellent differential gain (0.2%), differential phase (0.10°), and 0.5 dB flatness out to 22 MHz, these amplifiers are ideal for video applications.The ADA4853-1 is available in a 6-lead SC70, the ADA4853-2 is available in a 16-lead LFCSP_WQ, and the ADA4853-3 is available in both a 16-lead LFCSP_WQ and a 14-lead TSSOP. The ADA4853-1 temperature range is −40°C to +85°C while the ADA4853-2/ADA4853-3 temperature range is −40°C to +105°C.ApplicationsAutomotive infotainment systemsAutomotive safety systemsPortable multimedia playersVideo camerasDigital still camerasConsumer videoClock buffer
