A16486 Series

Catalog

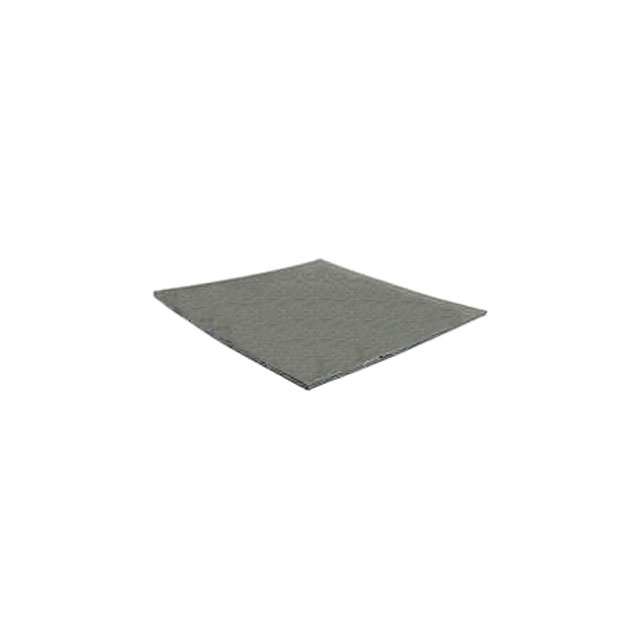

THERM PAD 457.2X457.2MM GRAY

Part	Thickness	Thickness	Thermal Conductivity	Color	Outline [y]	Outline [x]	Adhesive	Type	Shape
Laird Technologies - Thermal Materials A16486-05	0.05 in	50 mils	1.6 W/m-K	Gray	457.2 mm	457.2 mm	Tacky - Both Sides	Gap Filler Pad Sheet	Square
Laird Technologies - Thermal Materials A16486-09	0.09 in	2.286 mm	1.6 W/m-K	Gray	457.2 mm	457.2 mm	Tacky - Both Sides	Gap Filler Pad Sheet	Square
Laird Technologies - Thermal Materials A16486-06	0.06 in	1.524 mm	1.6 W/m-K	Gray	457.2 mm	457.2 mm	Tacky - Both Sides	Gap Filler Pad Sheet	Square
Laird Technologies - Thermal Materials A16486-02	0.02 in	0.508 mm	1.6 W/m-K	Gray	457.2 mm	457.2 mm	Tacky - Both Sides	Gap Filler Pad Sheet	Square
Laird Technologies - Thermal Materials A16486-03	0.03 in	0.762 mm	1.6 W/m-K	Gray	457.2 mm	457.2 mm	Tacky - Both Sides	Gap Filler Pad Sheet	Square
