01312 Series

Catalog

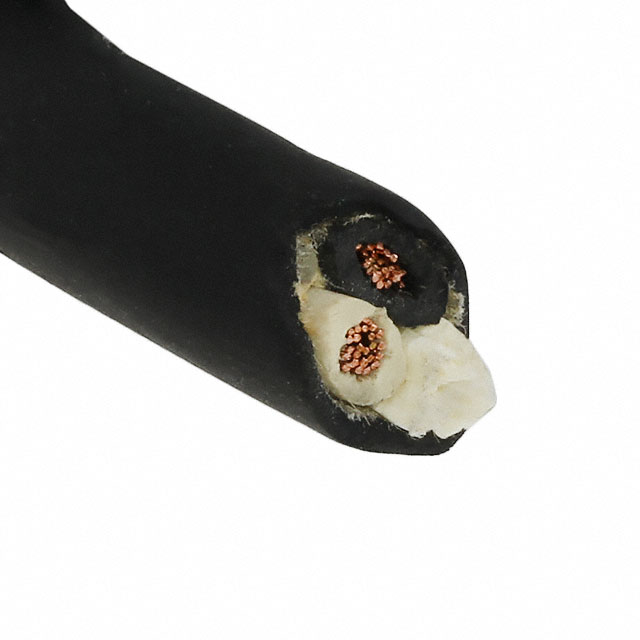

CABLE 2COND 16AWG BLACK 250'

Part	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Wire Gauge	Length	Length	Number of Conductors	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Insulation	Usage
Prysmian Group 01312.35.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG	76.2 m	250 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
Prysmian Group 01312.35.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG	76.2 m	250 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
Prysmian Group 01312.82.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG			2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
Prysmian Group 01312.38.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG	152.4 m	500 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
Prysmian Group 01312.46.01	Black	30 AWG	26	Carolprene	Copper Bare	90 °C	-40 C	16 AWG			2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Cord and Cordset
Prysmian Group 01312.46.01	Black	30 AWG	26	Carolprene	Copper Bare	90 °C	-40 C	16 AWG			2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Cord and Cordset
Prysmian Group 01312.15T.01	Black	30 AWG	26	Carolprene	Copper Bare	90 °C	-40 C	16 AWG	76.2 m	250 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Cord and Cordset
Prysmian Group 01312.15.01	Black	30 AWG	26	Carolprene	Copper Bare	90 °C	-40 C	16 AWG	76.2 m	250 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	Cord and Cordset
Prysmian Group 01312.35T.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG	76.2 m	250 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
Prysmian Group 01312.38T.01	Black	30 AWG	26	Carolprene	Copper Annealed Bare	90 °C	-40 C	16 AWG	152.4 m	500 ft	2	Multi-Conductor	300 VDC	0.03 in	0.762 mm	Ethylene Propylene Terpolymer Rubber (EPDM)
