RM15WTPZ Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT
| Part | Number of Positions | Current Rating (Amps) | Color | Features | Orientation | Connector Type | Fastening Type | Ingress Protection | Mounting Type | Material Flammability Rating | Shell Size - Insert [custom] | Primary Material | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Shell Material | Contact Material | Insert Material | Contact Finish - Mating | Backshell Material, Plating | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric Co Ltd | 12 | 5 A | Silver | Backshell Coupling Nut | Keyed | Plug Male Pins | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | Unshielded | 85 °C | -25 °C | 350 VAC 490 VDC | Brass Zinc Alloy | ||||||||
Hirose Electric Co Ltd | 2 | 10 A | Silver | Backshell Coupling Nut | Keyed | Plug Male Pins | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | Unshielded | 85 °C | -25 °C | 600 VAC 840 VDC | Zinc Alloy | Phosphor Bronze | Diallyl Phthalate (DAP) | Silver | Chrome Zinc Alloy | Chrome | |||
Hirose Electric Co Ltd | 10 | 5 A | Silver | Backshell Coupling Nut | Keyed | Plug Female Sockets | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 350 VAC 490 VDC | Zinc Alloy | Copper Alloy | Diallyl Phthalate (DAP) | Gold | Chrome Zinc Alloy | Chrome | 8 µin | 0.203 µm | ||
Hirose Electric Co Ltd | 4 | 10 A | Silver | Keyed | Receptacle Female Sockets | Threaded | IP67/IP68 | Panel Mount | UL94 V-0 | 15 | Metal | Unshielded | 85 °C | -25 °C | 500 VAC 700 VDC | Brass Zinc Alloy | Copper Alloy | Polyphenylene Sulfide (PPS) | Silver | Chromate | 78.7 µin | 2 µm | Bulkhead - Front Side Nut | ||

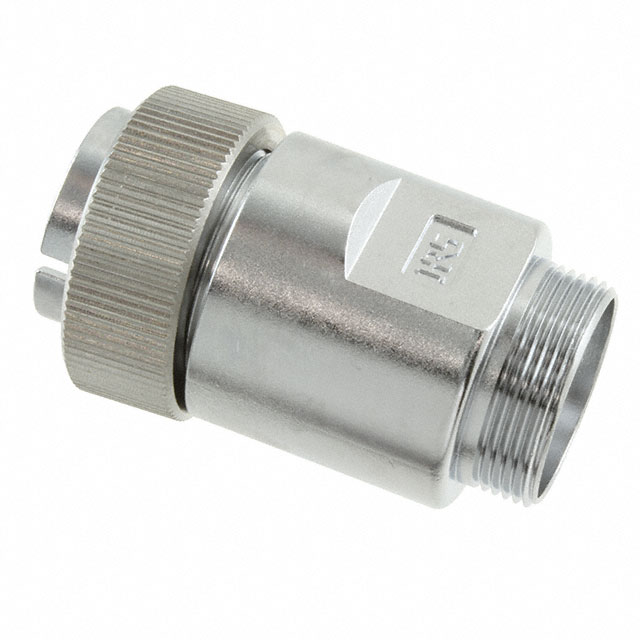

Hirose Electric Co Ltd | 8 | 5 A | Silver | Backshell Coupling Nut | Keyed | Plug Male Pins | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | Unshielded | 85 °C | -25 °C | 500 VAC 700 VDC | Brass Zinc Alloy | ||||||||
 Hirose Electric Co Ltd | 10 A | Silver | Backshell Coupling Nut | Keyed | Plug Female Sockets | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 500 VAC 700 VDC | Zinc Alloy | Phosphor Bronze | Diallyl Phthalate (DAP) | Silver | Chromate | 118.1 µin | 3 µm | ||||

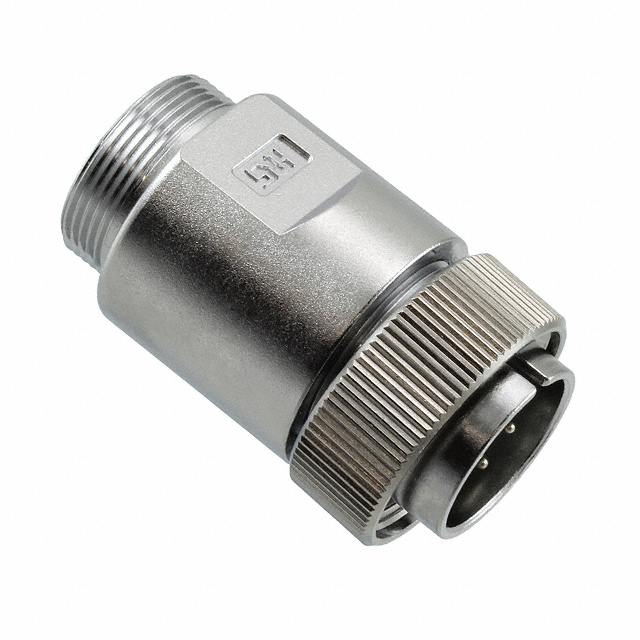

 Hirose Electric Co Ltd | 10 | 5 A | Silver | Backshell Coupling Nut | Keyed | Plug Male Pins | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 350 VAC 490 VDC | Zinc Alloy | Copper Alloy | Diallyl Phthalate (DAP) | Silver | Chromate | 78.7 µin | 2 µm | |||
Hirose Electric Co Ltd | 8 | 5 A | Silver | Backshell Coupling Nut | Keyed | Plug Male Pins | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 500 VAC 700 VDC | Zinc Alloy | Copper Alloy | Diallyl Phthalate (DAP) | Gold | Chrome Zinc Alloy | Chrome | 8 µin | 0.203 µm | ||
 Hirose Electric Co Ltd | 10 A | Silver | Backshell Coupling Nut | Keyed | Plug Female Sockets | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 500 VAC 700 VDC | Zinc Alloy | Phosphor Bronze | Diallyl Phthalate (DAP) | Gold | Chromate | 8 µin | 0.203 µm | ||||
Hirose Electric Co Ltd | 2 | 10 A | Silver | Backshell Coupling Nut | Keyed | Plug Female Sockets | Threaded | IP67/IP68 | Free Hanging (In-Line) | UL94 V-0 | 15 | Metal | 85 °C | -25 °C | 600 VAC 840 VDC | Zinc Alloy | Copper Alloy | Diallyl Phthalate (DAP) | Gold | Chrome Zinc Alloy | Chrome | 8 µin | 0.203 µm |
