11SM Series

Basic / Snap Action Switches Subminiature Basics

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

Basic / Snap Action Switches Subminiature Basics

Catalog

Basic / Snap Action Switches Subminiature Basics

Part	Termination Style	Mechanical Life	Release Force	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current Rating (Amps)	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Operating Force	Circuit	Differential Travel	Differential Travel	Voltage Rating - DC	Operating Position	Operating Position	Switch Function	Pretravel	Pretravel	Actuator Type	Termination Style
Honeywell Sensing and Productivity Solutions 11SM703-T	Solder Turret	10000000 Cycles	14 gf	-55 C	125 °C	Chassis Mount	4 A 5 A	250 V	0.005 "	0.13 mm	56 gf	SPDT	0.05 mm	0.002 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 11SM861-T	Solder Turret	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	5 A	250 V	0.005 "	0.13 mm	198 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 11SM144-H2	PC Pin	10000000 Cycles	28 gf	-55 C	125 °C	Through Hole	5 A	250 V	0.005 "	0.13 mm	85 gf	SPDT	0.05 mm	0.002 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)

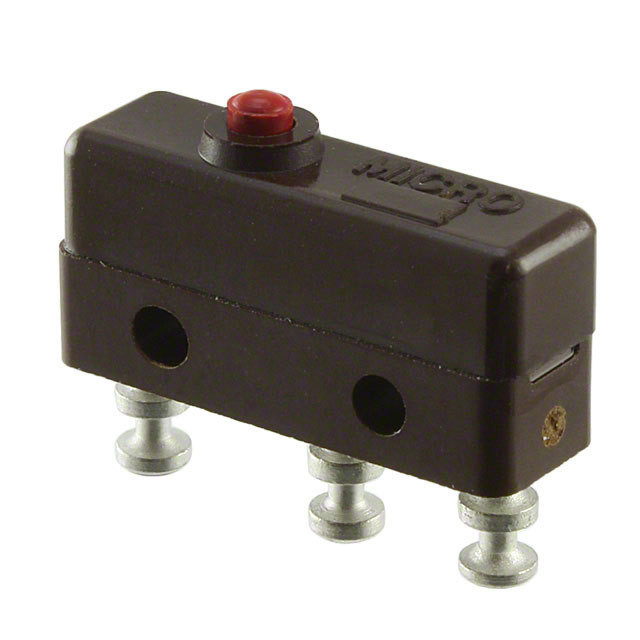

Honeywell Sensing and Productivity Solutions 11SM3-T2	Solder Turret	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	5 A	250 V	0.005 "	0.13 mm	141 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)
Honeywell Sensing and Productivity Solutions 11SM1-T2	Solder Turret	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	5 A	250 V	0.005 "	0.13 mm	141 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)

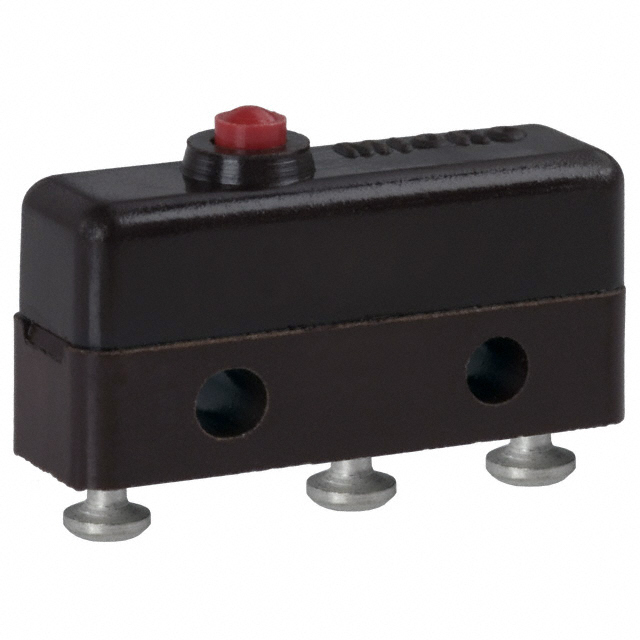

Honeywell Sensing and Productivity Solutions 11SM23-T	Solder Turret	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	1 A	125 V	0.005 "	0.13 mm	141 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)

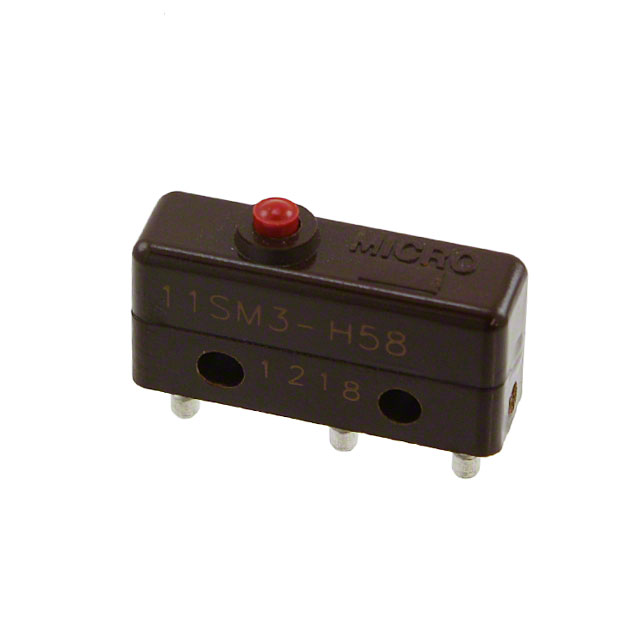

Honeywell Sensing and Productivity Solutions 11SM3-H58	Quick Connect	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	5 A	250 V	0.005 "	0.13 mm	141 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)	0.058 in
Honeywell Sensing and Productivity Solutions 11SM423	Solder Lug	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	1 A	125 V	0.005 "	0.13 mm	99 gf	SPDT	0.025 mm	0.001 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)

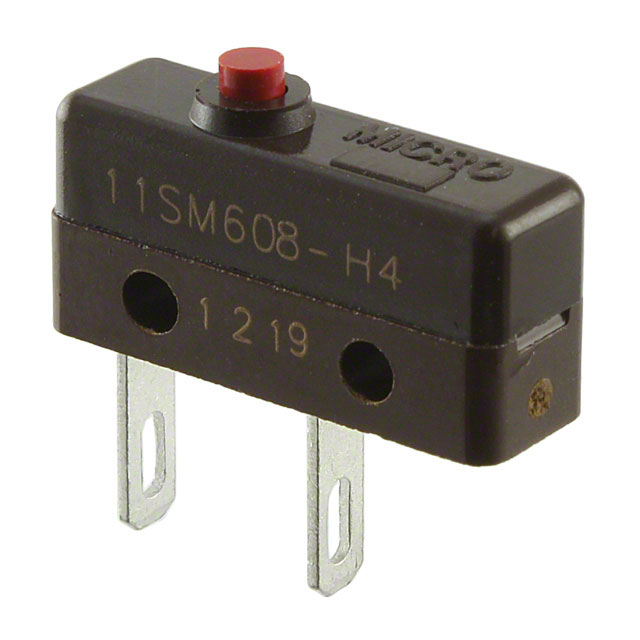

Honeywell Sensing and Productivity Solutions 11SM608-H4	Solder Quick Connect - 0.110" (2.8mm)	10000000 Cycles	28 gf	-55 C	125 °C	Chassis Mount	5 A	250 V	0.005 "	0.13 mm	99 gf	SPDT	0.1 mm	0.004 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)

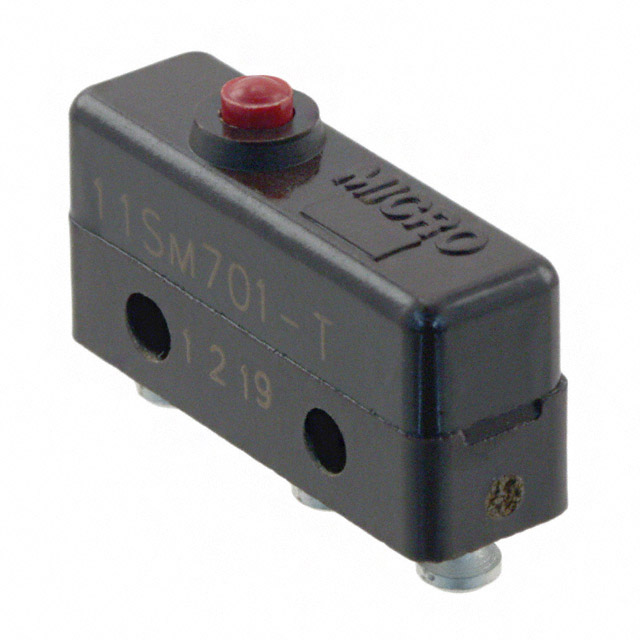

Honeywell Sensing and Productivity Solutions 11SM701-T	Solder Turret	10000000 Cycles	14 gf	-55 C	125 °C	Chassis Mount	4 A 5 A	250 V	0.005 "	0.13 mm	56 gf	SPDT	0.05 mm	0.002 in	30 V	0.33 in	8.4 mm	On-Mom	0.02 in	0.5 mm	Round (Pin Plunger)
