FFC & FPC Connectors
FFC & FPC Connectors
| Part | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Current Rating (Amps) | Housing Color | Actuator Color | Material Flammability Rating | Contact Finish | Locking Feature | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Number of Positions | Features | Cable End Type | Termination | Mounting Type | FFC, FCB Thickness [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Housing Material | Contact Material | Actuator Material | Connector/Contact Type | Flat Flex Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 20 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

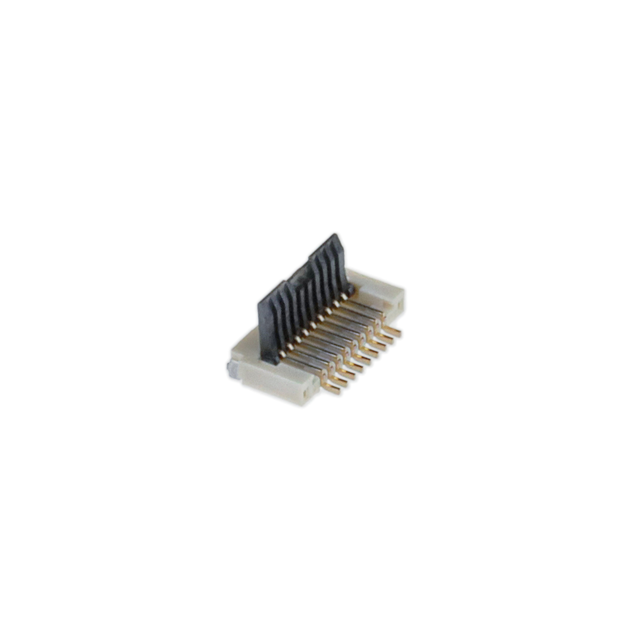

 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 9 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

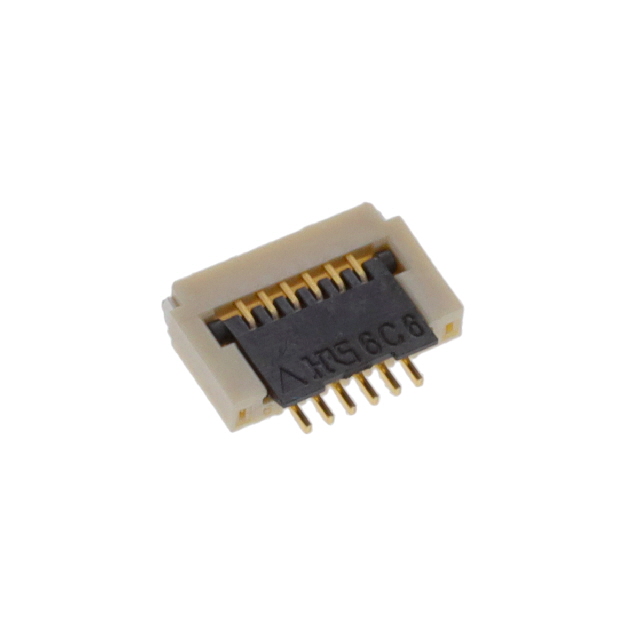

 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 6 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

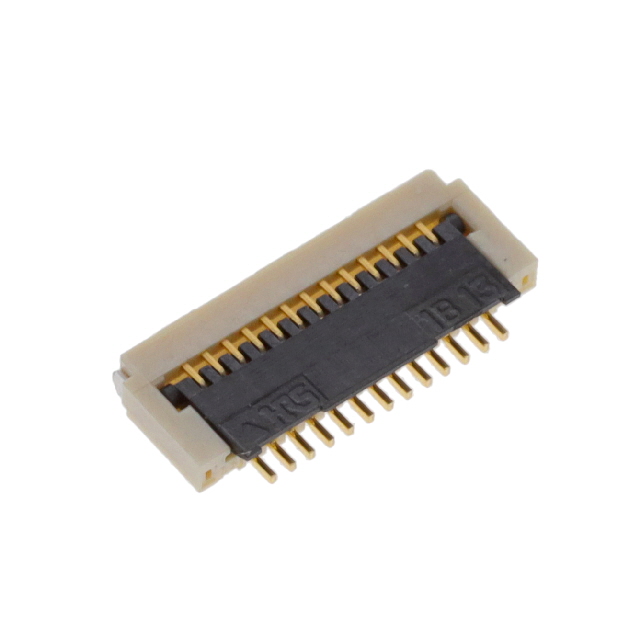

 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 13 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

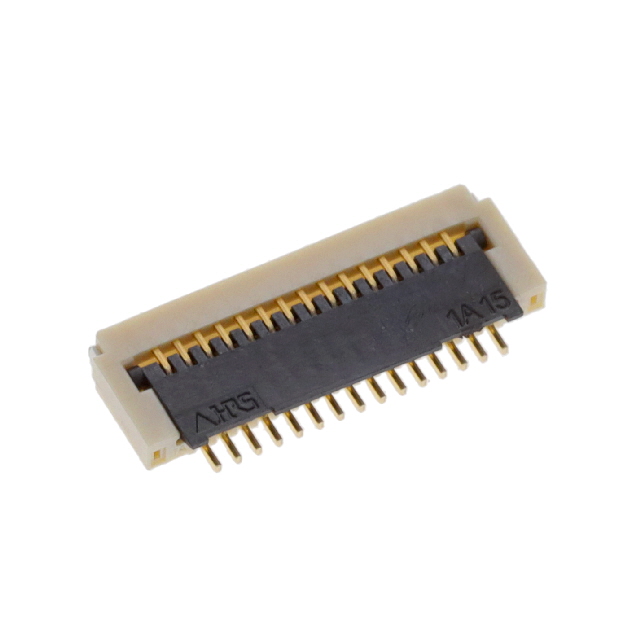

 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 15 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

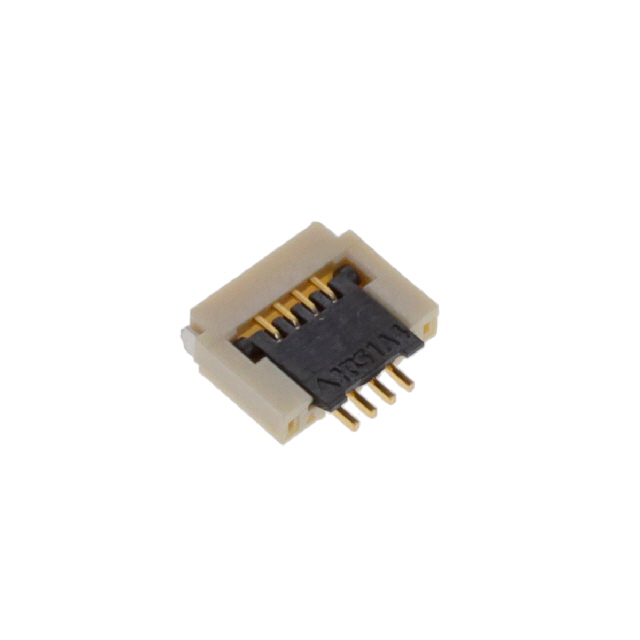

 Hirose Electric Co Ltd | 1.97 Áin | 0.05 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 4 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Liquid Crystal Polymer (LCP) Halogen Free | Contacts Bottom | FPC |

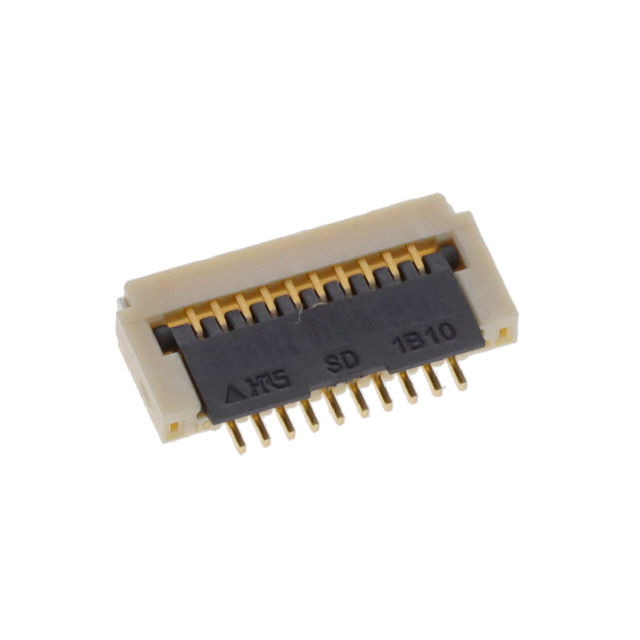

 Hirose Electric Co Ltd | 39.4 Áin | 1 Ám | 20 | 0.5 A | Beige | Black | UL94 V-0 | Gold | Backlock Flip Lock | 0.02 " | 0.5 mm | 1 mm | 0.039 " | 10 | Solder Retention Zero Insertion Force (ZIF) | Notched | Solder | Right Angle Surface Mount | 0.2 mm | -55 C | 85 °C | 50 V | Liquid Crystal Polymer (LCP) Halogen Free | Phosphor Bronze | Polyphenylene Sulfide (PPS) Halogen Free | Contacts Bottom | FPC |
