4710KL Series

Catalog

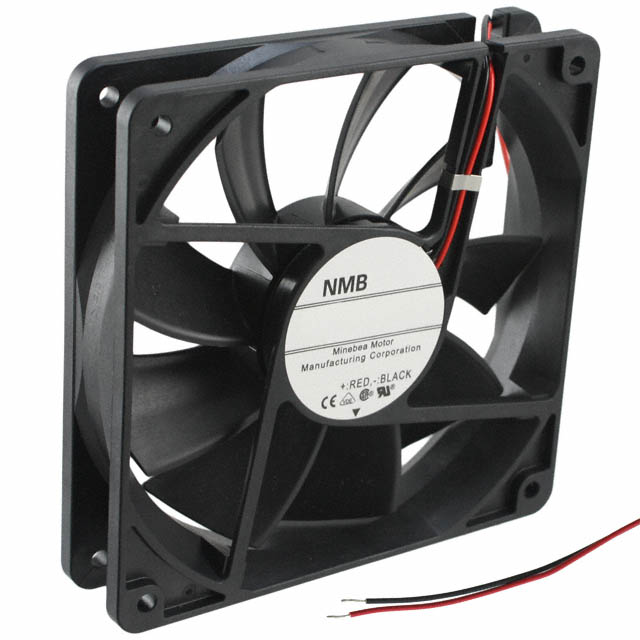

FAN AXIAL 119X25.5MM 12VDC WIRE

Part	Current Rating (Amps)	Air Flow	Air Flow	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Material - Frame	Lifetime @ Temp.	Bearing Type	Noise	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight	Termination	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Approval Agency	Fan Type	Width [y]	Voltage - Rated	Features
NMB TECHNOLOGIES 4710KL-04W-B30-B00	0.28 A	2.47 m³/min	88.2 CFM	Plastic	13.8 VDC	6 VDC	Plastic	100000 Hrs	Ball	35 dB	0.129 in H2O	32.1 Pa	3.36 W	180.08 g	0.397 lb	2 Wire Leads	Square	119 mm	119 mm	70 °C	-10 °C	2200 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC
NMB TECHNOLOGIES 4710KL-05W-B49-E50	0.22 A	2.82 m³/min	100.6 CFM	Plastic	27.6 VDC	10 VDC	Plastic	100000 Hrs	Ball	38.5 dB	0.164 in H2O	40.9 Pa	5.28 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	70 °C	-10 °C	2500 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	24 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-04W-B50-E00	0.55 A	3.21 m³/min	114.7 CFM	Plastic	13 V	6 VDC	Plastic	100000 Hrs	Ball	41.5 dB	0.203 in H2O	50.6 Pa	6.6 W	180.08 g	0.397 lb	2 Wire Leads	Square	119 mm	119 mm	60 °C	-10 °C	2800 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC
NMB TECHNOLOGIES 4710KL-04W-B20-E00	190 mA	2.13 mł/min	75.9 CFM	Plastic	13.8 VDC	6 VDC	Plastic	100000 Hrs	Ball	31 dB(A)	0.1 in H2O	24.9 Pa	2.28 W	180.08 g	0.397 lb	2 Wire Leads	Square	119 mm	119 mm	70 °C	-10 °C	1900 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC
NMB TECHNOLOGIES 4710KL-05W-B59-E00	0.29 A	3.21 m³/min	114.7 CFM	Plastic	26 VDC	10 VDC	Plastic	100000 Hrs	Ball	41.5 dB	0.203 in H2O	50.6 Pa	6.96 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	60 °C	-10 °C	2800 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	24 VDC	Locked Rotor Sensor
NMB TECHNOLOGIES 4710KL-04W-B50-B00	0.55 A	3.21 m³/min	114.7 CFM	Plastic	13 V	6 VDC	Plastic	100000 Hrs	Ball	41.5 dB	0.203 in H2O	50.6 Pa	6.6 W	180.08 g	0.397 lb	2 Wire Leads	Square	119 mm	119 mm	60 °C	-10 °C	2800 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC
NMB TECHNOLOGIES 4710KL-04W-B19-E50	120 mA	1.78 mł/min	63.5 CFM	Plastic	13.8 VDC	6 VDC	Plastic	100000 Hrs	Ball	27 dB(A)	0.072 in H2O	17.9 Pa	1.44 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	70 °C	-10 °C	1600 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-05W-B59-E50	0.29 A	3.21 m³/min	114.7 CFM	Plastic	26 VDC	10 VDC	Plastic	100000 Hrs	Ball	41.5 dB	0.203 in H2O	50.6 Pa	6.96 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	60 °C	-10 °C	2800 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	24 VDC	Speed Sensor (Tach)
NMB TECHNOLOGIES 4710KL-04W-B59-E00	0.55 A	3.21 m³/min	114.7 CFM	Plastic	13 V	6 VDC	Plastic	100000 Hrs	Ball	41.5 dB	0.203 in H2O	50.6 Pa	6.6 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	60 °C	-10 °C	2800 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	12 VDC	Locked Rotor Sensor
NMB TECHNOLOGIES 4710KL-05W-B49-E00	0.22 A	2.82 m³/min	100.6 CFM	Plastic	27.6 VDC	10 VDC	Plastic	100000 Hrs	Ball	38.5 dB	0.164 in H2O	40.9 Pa	5.28 W	180.08 g	0.397 lb	3 Wire Leads	Square	119 mm	119 mm	70 °C	-10 °C	2500 RPM	CE CSA UL VDE	Tubeaxial	25.5 mm	24 VDC	Locked Rotor Sensor
