74AUC2G80 Series

Catalog

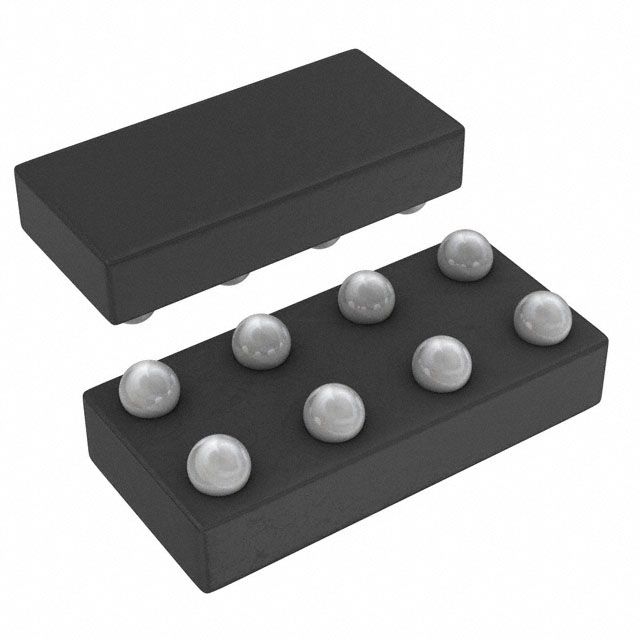

IC FF D-TYPE DUAL 1BIT 8DSBGA

Part	Mounting Type	Output Type	Input Capacitance	Max Propagation Delay @ V, Max CL	Trigger Type	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Number of Elements	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output High, Low	Clock Frequency	Number of Bits per Element	Current - Quiescent (Iq)	Type	Package / Case [custom]	Package / Case [custom]
Texas Instruments SN74AUC2G80YEPR	Surface Mount	FA2 Pico-SPOX	2.5 pF	1.8 ns	Positive Edge	Standard	2.7 V	0.8 V	8-DSBGA	2	8-XFBGA DSBGA	85 C	-40 ¯C	9 mA	275 MHz	1	10 µA	D-Type
Texas Instruments SN74AUC2G80DCUR	Surface Mount	FA2 Pico-SPOX	2.5 pF	1.8 ns	Positive Edge	Standard	2.7 V	0.8 V	8-VSSOP	2	8-VFSOP	85 C	-40 ¯C	9 mA	275 MHz	1	10 µA	D-Type	2.3 mm	0.091 "
Texas Instruments SN74AUC2G80DCURE4	Surface Mount	FA2 Pico-SPOX	2.5 pF	1.8 ns	Positive Edge	Standard	2.7 V	0.8 V	8-VSSOP	2	8-VFSOP	85 C	-40 ¯C	9 mA	275 MHz	1	10 µA	D-Type	2.3 mm	0.091 "
Texas Instruments SN74AUC2G80YZPR	Surface Mount	FA2 Pico-SPOX	2.5 pF	1.8 ns	Positive Edge	Standard	2.7 V	0.8 V	8-DSBGA	2	8-XFBGA DSBGA	85 C	-40 ¯C	9 mA	275 MHz	1	10 µA	D-Type
