AD7942 Series

Catalog

IC ADC 14BIT SAR 10LFCSP

Part	Configuration	Supplier Device Package	Reference Type	Sampling Rate (Per Second)	Input Type	Architecture	Number of Inputs	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Number of A/D Converters	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Data Interface	Package / Case	Number of Bits	Ratio - S/H:ADC	Input Range [Max]	Input Range [Min]	Power (Typ) @ Conditions	Supplied Contents	Utilized IC / Part	Package / Case [x]	Package / Case [x]	Contents	Primary Attributes	Primary Attributes	Type	Secondary Attributes	Platform	Function	Interconnect System
Analog Devices AD7942BCPZRL7	S/H-ADC	10-LFCSP-WD (3x3)	External	250 k	Pseudo-Differential	SAR	1	5.5 V	2.3 V	1	5.5 V	2.3 V	85 °C	-40 °C	Surface Mount	DSP SPI	10-VFDFN Exposed Pad CSP	14	1:1

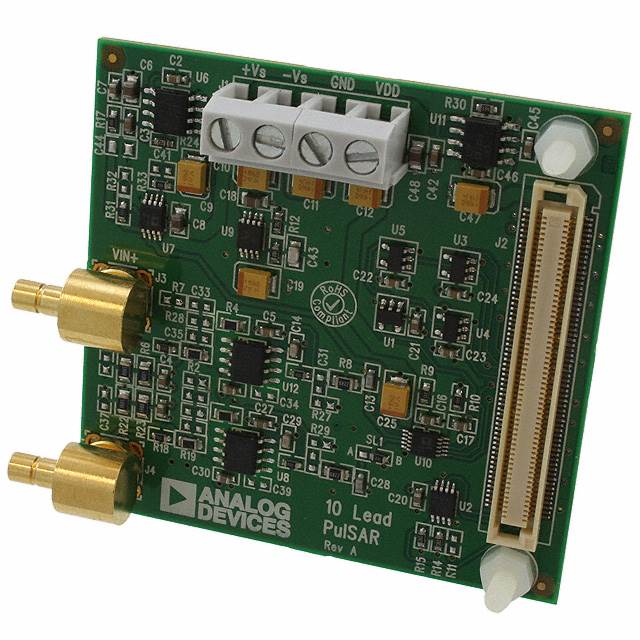

Analog Devices EVAL-AD7942SDZ				250 k						1						DSP MICROWIRE™ QSPI™ Serial SPI™		14		VREF	0	12.5 mW	Board(s)	AD7942
Analog Devices AD7942BRMZ	S/H-ADC	10-MSOP	External	250 k	Pseudo-Differential	SAR	1	5.5 V	2.3 V	1	5.5 V	2.3 V	85 °C	-40 °C	Surface Mount	DSP SPI	10-MSOP 10-TFSOP	14	1:1						3 mm	0.118 in

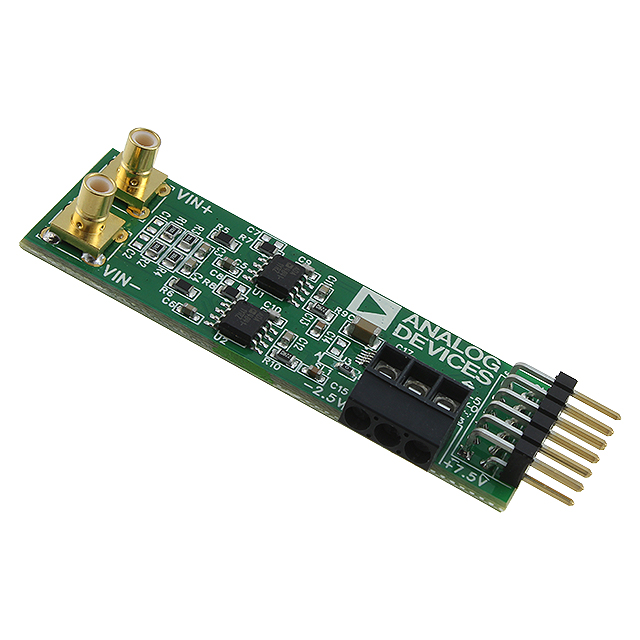

Analog Devices EVAL-AD7942-PMDZ																								AD7942			Board(s)	250 kSPS	14-Bit	Data Acquisition	SPI Interface(s)	Pmod™	Analog to Digital Converter (ADC)	Pmod
Analog Devices AD7942BCPZRL	S/H-ADC	10-LFCSP-WD (3x3)	External	250 k	Pseudo-Differential	SAR	1	5.5 V	2.3 V	1	5.5 V	2.3 V	85 °C	-40 °C	Surface Mount	DSP SPI	10-VFDFN Exposed Pad CSP	14	1:1
