16065 Series

Catalog

CABLE 5COND 8AWG BLACK

Part	Cable Type	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Length	Length	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]

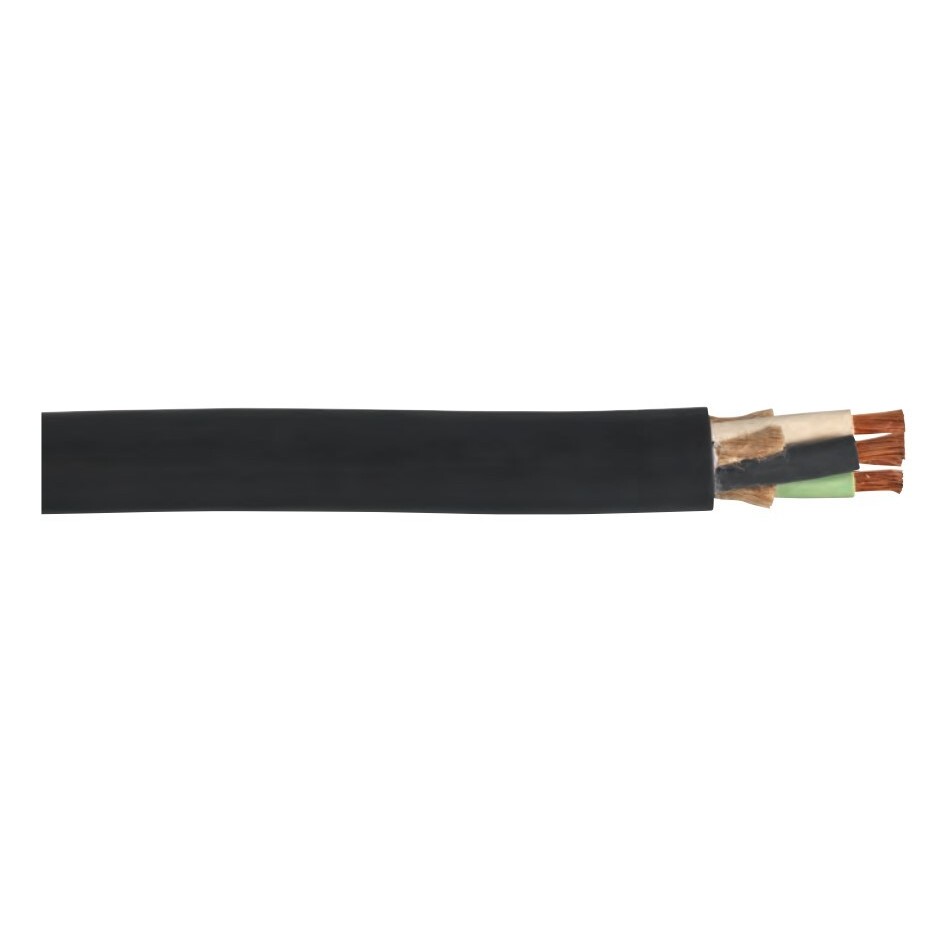

Prysmian Group 16065.35.01	Multi-Conductor	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	0.06 in	1.524 mm	8 AWG	76.2 m	250 ft	90 °C	-40 C	Copper Bare	Carolprene	133	29 AWG	5	Black	27.31 mm	1.075 in
Prysmian Group 16065.99.01	Multi-Conductor	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	0.06 in	1.524 mm	8 AWG			90 °C	-40 C	Copper Annealed Bare	Carolprene	133	29 AWG	5	Black	26.16 mm		1.03 in
Prysmian Group 16065.35.01	Multi-Conductor	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	0.06 in	1.524 mm	8 AWG	76.2 m	250 ft	90 °C	-40 C	Copper Bare	Carolprene	133	29 AWG	5	Black	27.31 mm	1.075 in

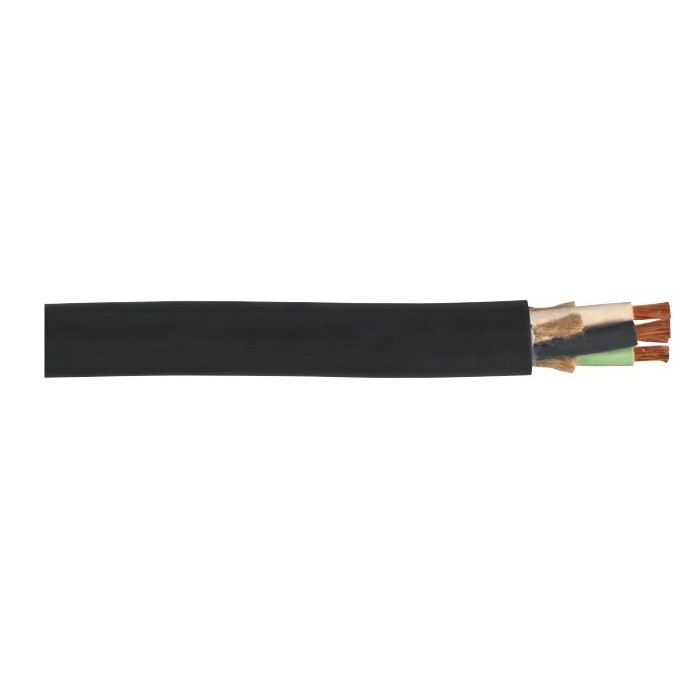

Prysmian Group 16065.41.01	Multi-Conductor	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	0.06 in	1.524 mm	8 AWG	304.8 m	1000 ft	90 °C	-40 C	Copper Bare	Carolprene	133	29 AWG	5	Black	27.31 mm	1.075 in
Prysmian Group 16065.41.01	Multi-Conductor	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	0.06 in	1.524 mm	8 AWG	304.8 m	1000 ft	90 °C	-40 C	Copper Bare	Carolprene	133	29 AWG	5	Black	27.31 mm	1.075 in
