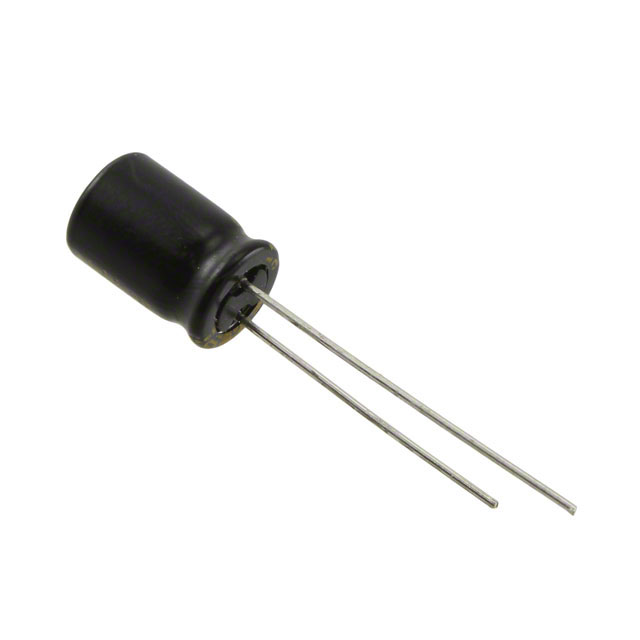

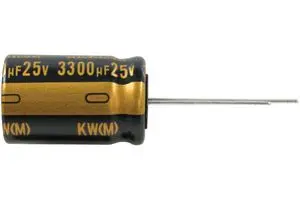

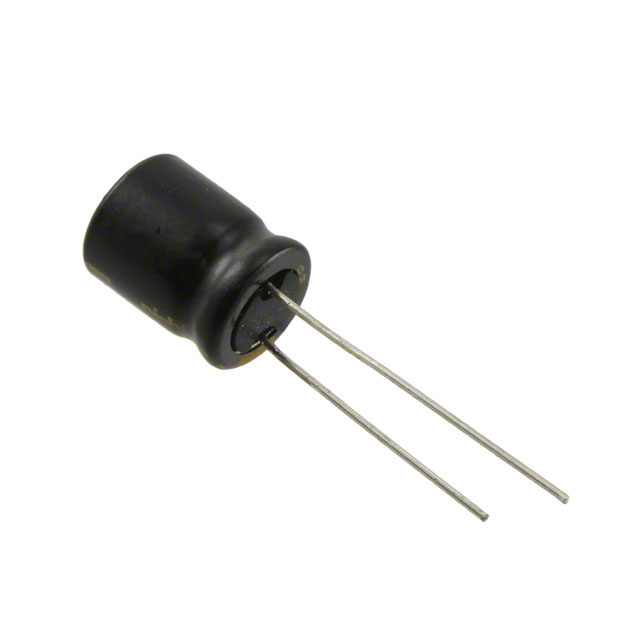

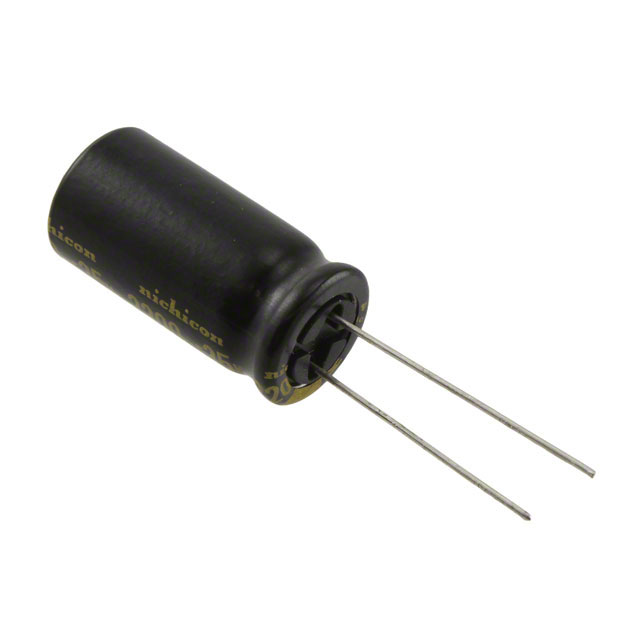

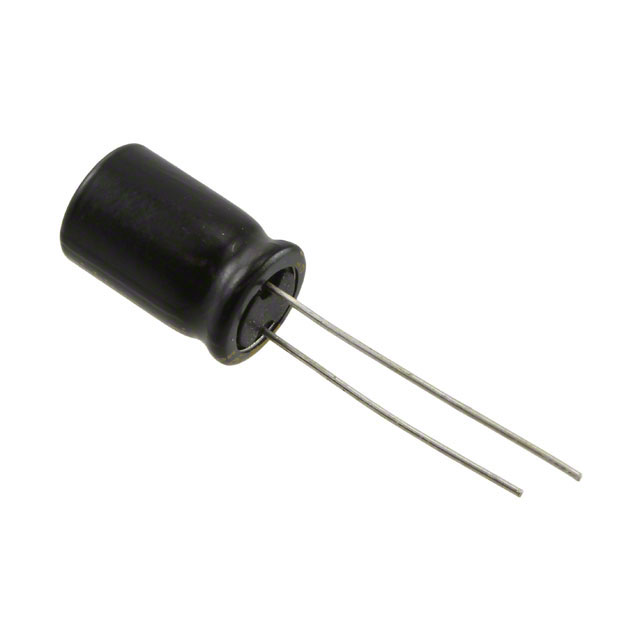

UKW Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 63VOLTS 47UF 20%

Part	Mounting Type	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Applications	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Polarization	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Nichicon UKW1J470MED	Through Hole	330 mA	0.248 "	6.3 mm	Audio	Can Radial	2.5 mm	0.098 in	20 %	Polar	2000 Hrs	85 °C	-40 C	11 mm	0.433 in	63 V	47 µF	165 mA
Nichicon UKW1H332MHD	Through Hole	2.714 A	0.709 in	18 mm	Audio	Can Radial	7.5 mm	0.295 in	20 %	Polar	2000 Hrs	85 °C	-40 C			50 VDC	3.3 mF	2.36 A	35.5 mm	1.398 in
Nichicon UKW1E221MPD1TD	Through Hole		0.315 in	8 mm	Audio	Can Radial	3.5 mm	0.138 in	20 %	Polar	2000 Hrs	85 °C	-40 C			25 VDC	220 µF	320 mA			0.492 in	12.5 mm
Nichicon UKW1C332MHD1TO	Through Hole	1.955 A	0.492 in	12.5 mm	Audio	Can Radial	5 mm	0.197 "	20 %	Polar	2000 Hrs	85 °C	-40 C			16 V	3.3 mF	1.7 A		1.063 in	27 mm
Nichicon UKW1C102MPD1TD	Through Hole	885.5 mA	0.394 in	10 mm	Audio	Can Radial	5 mm	0.197 "	20 %	Polar	2000 Hrs	85 °C	-40 C	0.689 in		16 V	1000 µF	770 mA					17.5 mm
Nichicon UKW1J102MHD1TN	Through Hole	1.495 A	0.63 in	16 mm	Audio	Can Radial	7.5 mm	0.295 in	20 %	Polar	2000 Hrs	85 °C	-40 C			63 V	1000 µF	1.3 A		1.063 in	27 mm
Nichicon UKW2A330MPD1TA	Through Hole	320 mA	0.315 in	8 mm	Audio	Can Radial	3.5 mm	0.138 in	20 %	Polar	2000 Hrs	85 °C	-40 C	13 mm	0.512 "	100 V	33 ÁF	160 mA
Nichicon UKW1A102MPD	Through Hole	724.5 mA	0.394 in	10 mm	Audio	Can Radial	5 mm	0.197 "	20 %	Polar	2000 Hrs	85 °C	-40 C			10 V	1000 µF	630 mA			0.492 in	12.5 mm
