HV Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT HV2225Y822JXHATHV

Part	Tolerance	Applications	Thickness (Max)	Temperature Coefficient	Features	Voltage - Rated	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Size / Dimension Width	Size / Dimension Length	Capacitance	Height - Seated (Max)

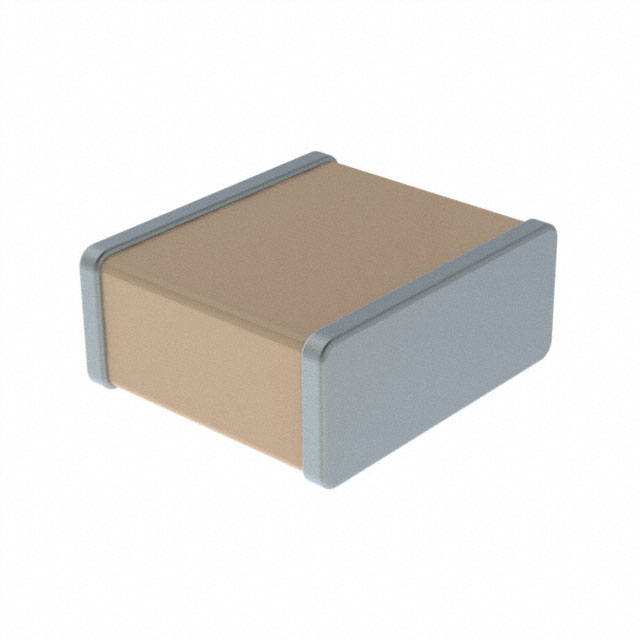

Vishay Dale HV2225Y822JXHATHV	5 %	General Purpose	0.106 in	X7R	High Voltage	3000 V	2225 (5763 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.25 in	0.22 in	8200 pF

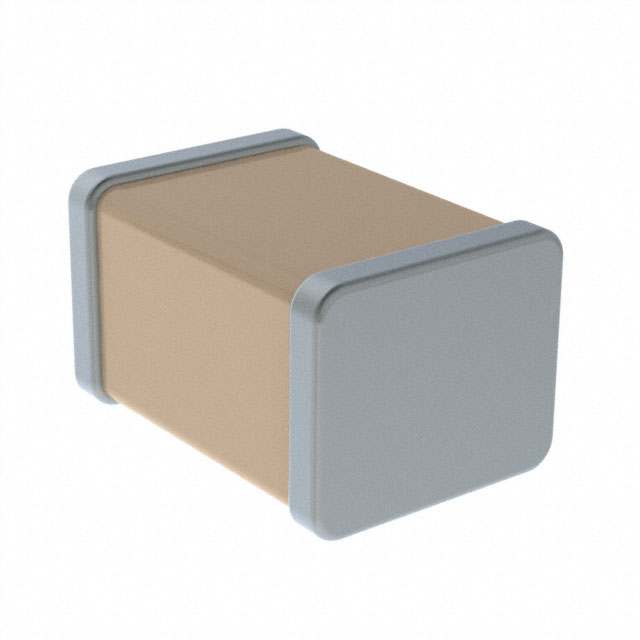

Vishay Dale HV1812Y332KXHATHV	10 %	General Purpose	0.106 in	X7R	High Voltage	3000 V	1812 (4532 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.126 in	0.177 in	3300 pF

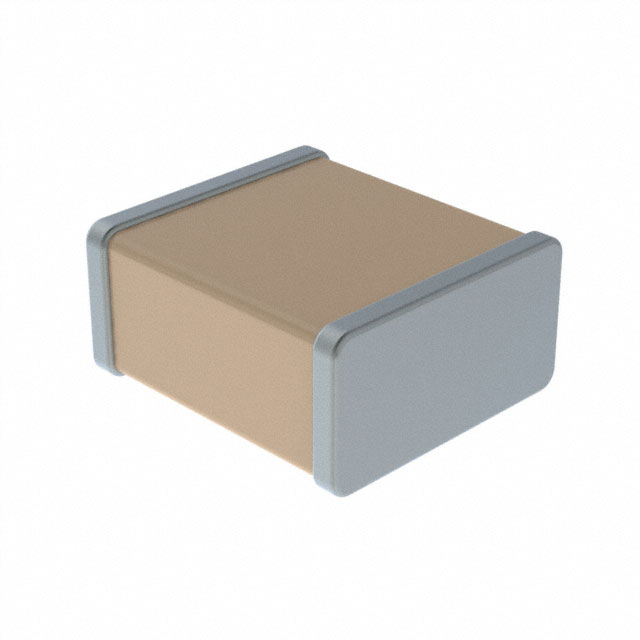

Vishay Dale HV2220Y102MXMATHV	20 %	General Purpose	0.106 in	X7R	High Voltage	5 kV	2220 (5750 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.2 in	0.22 in	1000 pF
Vishay Dale HV2225Y152KX6ATHV	10 %	General Purpose	0.106 in	X7R	High Voltage	6000 V	2225 (5763 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.25 in	0.22 in	1500 pF	0.106 in
Vishay Dale HV1825Y152MXVATHV	20 %	General Purpose	0.106 in	X7R	High Voltage	4000 V	1825 (4564 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.252 in	0.177 in	1500 pF
Vishay Dale HV2220Y103KXHATHV	10 %	General Purpose	0.106 in	X7R	High Voltage	3000 V	2220 (5750 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.2 in	0.22 in	10000 pF
Vishay Dale HV1812Y221JXMARHV	5 %	General Purpose	0.106 in	X7R	High Voltage	5 kV	1812 (4532 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.126 in	0.177 in	220 pF
Vishay Dale HV1812Y821JXMATHV	5 %	General Purpose	0.106 in	X7R	High Voltage	5 kV	1812 (4532 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.126 in	0.177 in	820 pF
Vishay Dale HV2220Y152KXHATHV	10 %	General Purpose	0.106 in	X7R	High Voltage	3000 V	2220 (5750 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.2 in	0.22 in	1500 pF
Vishay Dale HV1812Y331KX6ATHV	10 %	General Purpose	0.106 in	X7R	High Voltage	6000 V	1812 (4532 Metric)	125 °C	-55 °C	MLCC Surface Mount	0.126 in	0.177 in	330 pF	0.106 in
