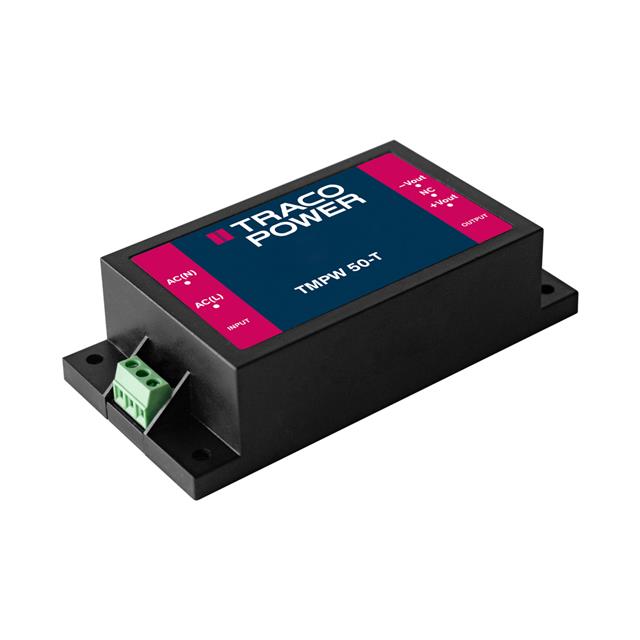

TMPW 50-T Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC POWER MODULES 50W 15V 3333MA 90-305VAC SCREW TERMINALS ENCAPSULATED CHASSIS MOUNT
| Part | Minimum Load Required | Power (Watts) | Voltage - Output 1 | Current - Output 1 | Mounting Type | Standard Number | Approval Agency | Applications | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Efficiency | Voltage - Isolation | Number of Outputs | Voltage - Input [Max] | Voltage - Input [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 50 W | 15 V | 3.333 A | Chassis Mount | 60335-1 62368-1 | CB CE cURus EAC UKCA | Household Appliances ITE (Commercial) | 48.3 mm | 1.9 " | 3.82 in | 97 mm | 25.4 mm | 1 in | 88 % | 4000 V | 1 | 305 VAC 430 VDC | 90 VAC 100 V | 70 °C | -40 C | Enclosed | |
 Traco Power | 50 W | 24 V | 2.083 A | Chassis Mount | 60335-1 62368-1 | CB CE cURus EAC UKCA | Household Appliances ITE (Commercial) | 48.3 mm | 1.9 " | 3.82 in | 97 mm | 25.4 mm | 1 in | 88 % | 4000 V | 1 | 305 VAC 430 VDC | 90 VAC 100 V | 70 °C | -40 C | Enclosed |
