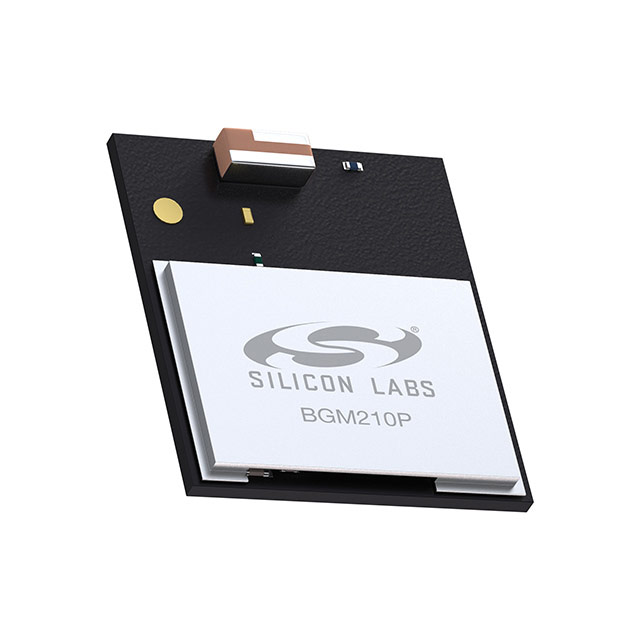

BGM210 Series

Catalog

RF TXRX MOD BLUETOOTH CHIP SMD

Part	Sensitivity	Memory Size	Current - Receiving [Min]	Current - Receiving [Max]	Power - Output	Protocol	Current - Transmitting [Min]	Current - Transmitting [Max]	Utilized IC / Part	Package / Case	Antenna Type	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Modulation	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Frequency [Max]	Frequency [Min]	Current - Transmitting [Min] [x]	Current - Transmitting [Max] [x]
SILICON LABS BGM210PA32JIA2	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	20 dBm	Bluetooth v5.3	59.7 mA	173 mA	EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz
SILICON LABS BGM210PA22JIA2	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	10 dBm	Bluetooth v5.3			EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz	16.1 mA	34.1 mA
SILICON LABS BGM210PA32JIA2R	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	20 dBm	Bluetooth v5.3	59.7 mA	173 mA	EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz
SILICON LABS BGM210P022JIA2R	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	10 dBm	Bluetooth v5.1			EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.8 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz	16.1 mA	34.1 mA
SILICON LABS BGM210PB32JIA2	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	20 dBm	Bluetooth v5.3	59.7 mA	173 mA	EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz
SILICON LABS BGM210PB22JIA2	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	10 dBm	Bluetooth v5.3			EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz	16.1 mA	34.1 mA
SILICON LABS BGM210P032JIA2	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	20 dBm	Bluetooth v5.1	59.7 mA	173 mA	EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz
SILICON LABS BGM210PA22JIA2R	-104.5 dBm	1 MB 96 kB	9.1 mA	9.9 mA	10 dBm	Bluetooth v5.3			EFR32BG21	31-SMD Module	Chip Integrated	ADC GPIO I2C I2S IrDA PWM SPI UART	3.8 V	1.71 V	2 MBd	GFSK	Surface Mount	125 °C	-40 °C	Bluetooth	2.4835 GHz	2.4 GHz	16.1 mA	34.1 mA
