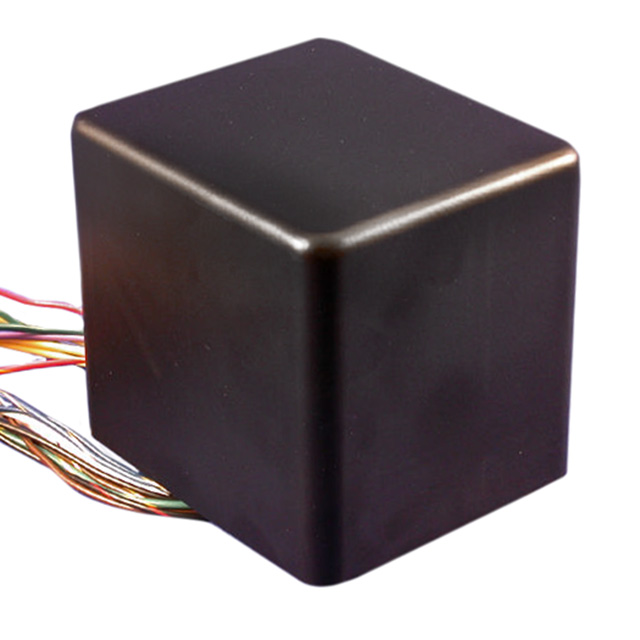

370DX Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
POWER TRANSFORMERS TRANSFORMER, HIGH VOLTAGE & FILAMENT, 86VA, 550V C.T. @ 104MA., 300P SERIES
| Part | Voltage - Primary | Center Tap | Secondary Winding(s) | Voltage - Secondary (Full Load) | Voltage - Isolation | Current - Output (Max) | Height - Seated (Max) [Max] [z] | Type | Power - Max [Max] | Primary Winding(s) | Size / Dimension [x] | Size / Dimension [y] | Weight | Weight | Termination Style | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 100 V 110 V 120 V 200 V 220 V 240 V | Triple | 5 V 6.3 V 550 V | 2000 Vrms | 2 A 3 A 104 mA | 86.89 mm | Laminated Core | 86 VA | Dual Multiple Taps | 84.07 mm | 71.37 mm | 2.7 lbs | 1.2 kg | Wire Leads | Chassis Mount |
