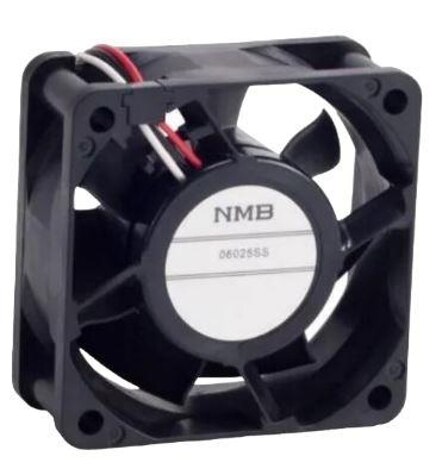

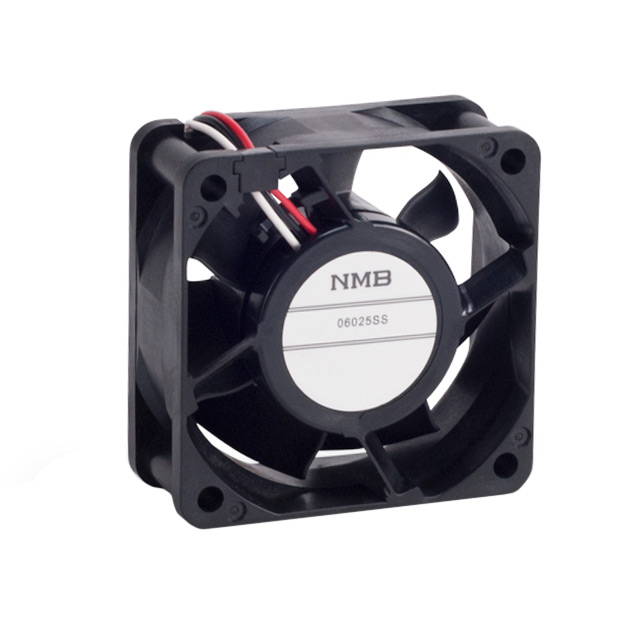

06025SS Series

Catalog

DC FANS DC TUBEAXIAL FAN, 60X60X25MM, 12VDC

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Features	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Width [y]	Size / Dimension [z]	Size / Dimension [x]	Fan Type	Bearing Type	Static Pressure	Static Pressure	RPM	Air Flow	Air Flow	Noise	Voltage - Rated
NMB TECHNOLOGIES 06025SS-12L-EA-D0	Plastic	Plastic	40 °C 50000 Hrs	13.8 VDC	6 VDC	0.09 A	Auto Restart	1.08 W	70 °C	-10 °C	2 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.141 in H2O	35.1 Pa	3500 RPM	17.1 CFM	0.479 mł/min	23.5 dB(A)	12 VDC
NMB TECHNOLOGIES 06025SS-24L-EL-D0							Auto Restart Locked Rotor Sensor	1.2 W	70 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.141 in H2O	35.1 Pa	3500 RPM	17.1 CFM	0.479 mł/min	23.5 dB(A)	24 VDC
NMB TECHNOLOGIES 06025SS-24R-ET-D0							Auto Restart Speed Sensor (Tach)	3.6 W	60 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.405 in H2O	100.9 Pa	6000 RPM	30 CFM	0.84 mł/min	38.5 dB	24 VDC
NMB TECHNOLOGIES 06025SS-24R-ET-D0	Plastic	Plastic	40 °C 50000 Hrs	26.4 VDC	10 VDC	150 mA	Auto Restart Speed Sensor (Tach)	3.6 W	60 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.405 in H2O	100.9 Pa	6000 RPM	30 CFM	0.84 mł/min	38.5 dB	24 VDC
NMB TECHNOLOGIES 06025SS-24N-AA-D0							Auto Restart	2.16 W	60 °C	-10 °C	2 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.253 in H2O	63 Pa		23.3 CFM	0.66 m³/min	33 dB(A)	24 VDC
NMB TECHNOLOGIES 06025SS-12L-EA-D0	Plastic	Plastic	40 °C 50000 Hrs	13.8 VDC	6 VDC	0.09 A	Auto Restart	1.08 W	70 °C	-10 °C	2 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.141 in H2O	35.1 Pa	3500 RPM	17.1 CFM	0.479 mł/min	23.5 dB(A)	12 VDC
NMB TECHNOLOGIES 06025SS-12N-AT-D0	Plastic	Plastic	40 °C 50000 Hrs			0.18 A	Auto Restart Speed Sensor (Tach)	2.16 W	60 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.25 in H2O	62.3 Pa		23.3 CFM	0.652 mł/min	33 dB(A)	12 VDC
NMB TECHNOLOGIES 06025SS-24L-EL-D0	Plastic	Plastic	40 °C 50000 Hrs	27.6 VDC	10 VDC	50 mA	Auto Restart Locked Rotor Sensor	1.2 W	70 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.141 in H2O	35.1 Pa	3500 RPM	17.1 CFM	0.479 mł/min	23.5 dB(A)	24 VDC
NMB TECHNOLOGIES 06025SS-24N-AA-D0	Plastic	Plastic	40 °C 50000 Hrs	26.4 VDC	10 VDC	0.09 A	Auto Restart	2.16 W	60 °C	-10 °C	2 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.253 in H2O	63 Pa		23.3 CFM	0.66 m³/min	33 dB(A)	24 VDC
NMB TECHNOLOGIES 06025SS-24R-AT-D0	Plastic	Plastic	40 °C 50000 Hrs	26.4 VDC	10 VDC	150 mA	Auto Restart Speed Sensor (Tach)	3.6 W	60 °C	-10 °C	3 Wire Leads	25 mm	60 mm	60 mm	Tubeaxial	Sleeve	0.41 in H2O	102.1 Pa	6000 RPM	30 CFM	0.84 mł/min	38.5 dB	24 VDC
