General Purpose 96 KB Flash Microcontroller
Key Features
• CPU* Up to 16 MIPS performance
• * 16 x 16 Hardware Multiply, Single Cycle Execution
• * 32-bit x 16-bit Hardware Divider
• * C Compiler Optimized Instruction Set
•
• System* Internal oscillator support - 31 kHz to 8 MHz, up to 32 MHz with 4X PLL
• * On-chip LDO Voltage Regulator
• * JTAG Boundary Scan and Flash Memory Program Support
• * Fail-Safe Clock Monitor – allows safe shutdown if clock fails
• * Watchdog Timer with separate RC oscillator
•
• Low Power nanoWatt* Run, Idle and Sleep modes
• * Multiple, Switchable Clock Modes for Optimum Performance and Power Management
•
• Analog Features* 10-bit ADC, 16 channels, 500k samples per second
• * Two Analog comparators
•
• Peripherals* 2x UART Modules with LIN and IrDA® support, 4 Deep FIFO
• * 2x SPI ™ Modules with 8 Deep FIFO
• * 2x I2C™ Modules with Master and Slave Modes
• * Five 16-bit Timer Modules
• * Up to 5 Input Capture and 5 Output Compare / PWM, all with dedicated timers
• * Hardware RTCC, Real-Time Clock Calendar with Alarms
• * PMP, Parallel Master Port, with 16 Address Lines, and 8/16-bit Data
Description
AI

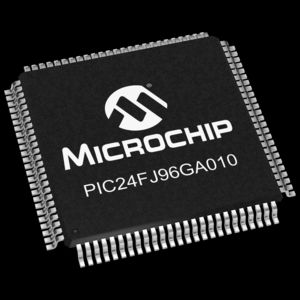

PIC24 16-bit Microcontroller, 96 KB Flash Memory, 8 KB RAM, and Advanced Peripherals, 100 Pin Package
