PLS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 560UF 6.3V 20% 105O

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Voltage - Rated	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Capacitance	Ripple Current @ High Frequency	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon PLS0J561MCO8TD	Polymer	-55 C	105 ░C	5000 Hrs	20 %	9 mm	0.354 in	General Purpose	6.3 VDC	2.5 mm	0.098 in	9 mOhms	0.248 "	6.3 mm	Can Radial	560 µF	4.3 A	Through Hole
Nichicon PLS0J391MCL2TD	Polymer	-55 C	105 ░C	5000 Hrs	20 %	7 mm	0.276 in	General Purpose	6.3 VDC	3.5 mm	0.138 in	15 mOhm	0.315 in	8 mm	Can Radial	390 µF	3.9 A	Through Hole
Nichicon PLS0J391MCL2	Polymer	-55 C	105 ░C	5000 Hrs	20 %	7 mm	0.276 in	General Purpose	6.3 VDC	3.5 mm	0.138 in	15 mOhm	0.315 in	8 mm	Can Radial	390 µF	3.9 A	Through Hole

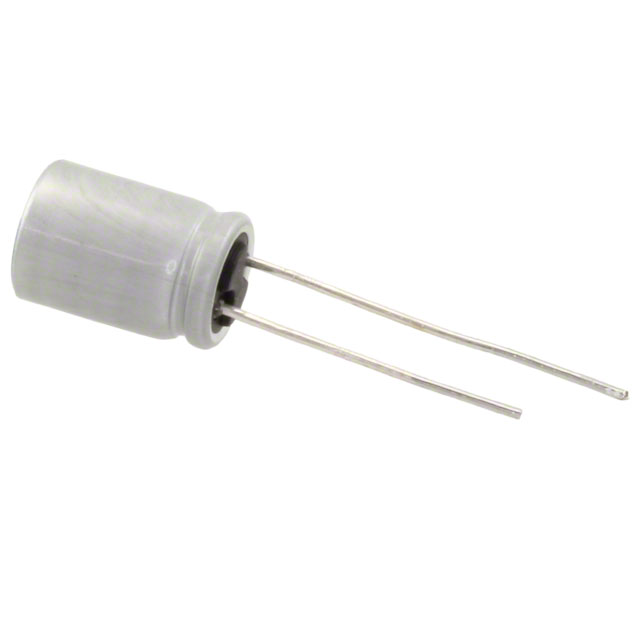

Nichicon PLS1A271MDO1TD	Polymer	-55 C	105 ░C	5000 Hrs	20 %		0.472 in	General Purpose	10 V	3.5 mm	0.138 in	8 mOhms	0.315 in	8 mm	Can Radial	270 µF	4.9 A	Through Hole	12 mm
Nichicon PLS0G561MCO6	Polymer	-55 C	105 ░C	5000 Hrs	20 %	9 mm	0.354 in	General Purpose	4 V	3.5 mm	0.138 in	7 mOhms	0.315 in	8 mm	Can Radial	560 µF	5.2 A	Through Hole
Nichicon PLS1C331MDO1	Polymer	-55 C	105 ░C	5000 Hrs	20 %			General Purpose	16 V	5 mm	0.197 "	9 mOhms	0.394 in	10 mm	Can Radial	330 µF	4.7 A	Through Hole		0.512 "	13 mm

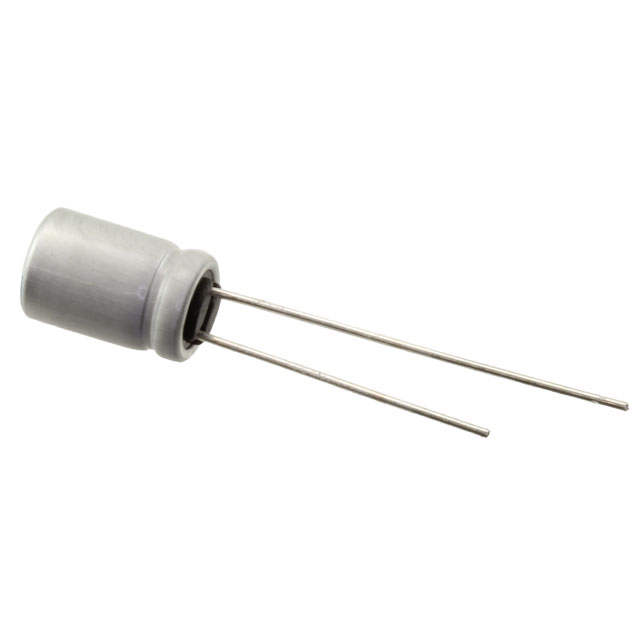

Nichicon PLS0J331MDL4TD	Polymer	-55 C	105 ░C	5000 Hrs	20 %	10.5 mm	0.413 "	General Purpose	6.3 VDC	2.5 mm	0.098 in	20 mOhms	0.248 "	6.3 mm	Can Radial	330 µF	3000 mA	Through Hole
Nichicon PLS0E681MCL2	Polymer	-55 C	105 ░C	5000 Hrs	20 %	7 mm	0.276 in	General Purpose	2.5 V	3.5 mm	0.138 in	15 mOhm	0.315 in	8 mm	Can Radial	680 µF	3.9 A	Through Hole
