TRI 10 Series

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 18-36VIN 5.1V 2000MA 10W ISO REG DIP-24

Part	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Voltage - Output 1	Voltage - Input (Min) [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Package / Case	Type	Mounting Type	Applications	Voltage - Output 2	Current - Output (Max) [Max]	Current - Output (Max)
Traco Power TRI 10-2411	1	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	85 °C	-40 C	CB cURus	5.1 V	18 V	5000 V	2 A	84 %	10 W	24-DIP Module 5 Leads	Isolated Module	Through Hole	ITE (Commercial)

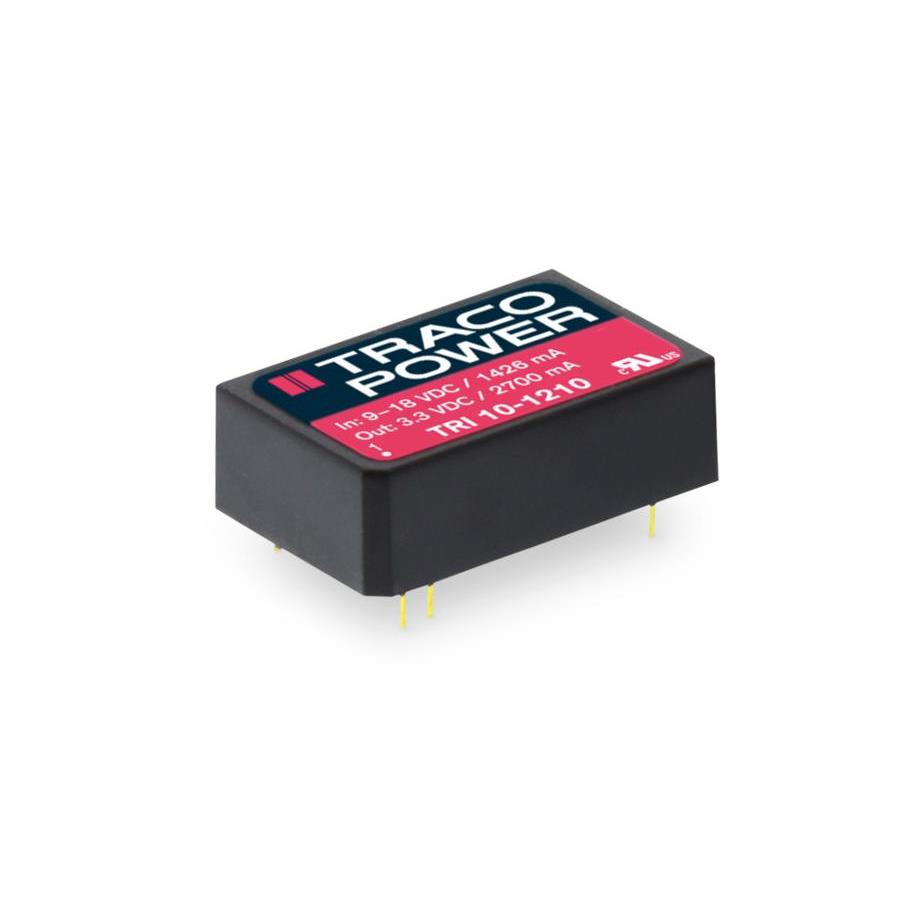

Traco Power TRI 10-4813	1	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	75 V	85 °C	-40 C	CB cURus	15 V	36 V	5000 V	666 mA	88 %	10 W	24-DIP Module 5 Leads	Isolated Module	Through Hole	ITE (Commercial)
Traco Power TRI 10-4810	1	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	75 V	85 °C	-40 C	CB cURus	3.3 V	36 V	5000 V	2.7 A	81 %	8.9 W	24-DIP Module 5 Leads	Isolated Module	Through Hole	ITE (Commercial)
Traco Power TRI 10-2422	2	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	85 °C	-40 C	CB cURus	12 V	18 V	5000 V	416 mA	88 %	10 W	24-DIP Module 6 Leads	Isolated Module	Through Hole	ITE (Commercial)	-12 V	416 mA
Traco Power TRI 10-2423	2	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	85 °C	-40 C	CB cURus	15 V	18 V	5000 V		87 %	10 W	24-DIP Module 6 Leads	Isolated Module	Through Hole	ITE (Commercial)	-15 V		333 mA
Traco Power TRI 10-2412	1	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	36 V	85 °C	-40 C	CB cURus	12 V	18 V	5000 V	833 mA	87 %	10 W	24-DIP Module 5 Leads	Isolated Module	Through Hole	ITE (Commercial)
Traco Power TRI 10-4811	1	0.8 "	12 mm	0.47 "	20.3 mm	31.8 mm	1.25 in	75 V	85 °C	-40 C	CB cURus	5.1 V	36 V	5000 V	2 A	84 %	10 W	24-DIP Module 5 Leads	Isolated Module	Through Hole	ITE (Commercial)
