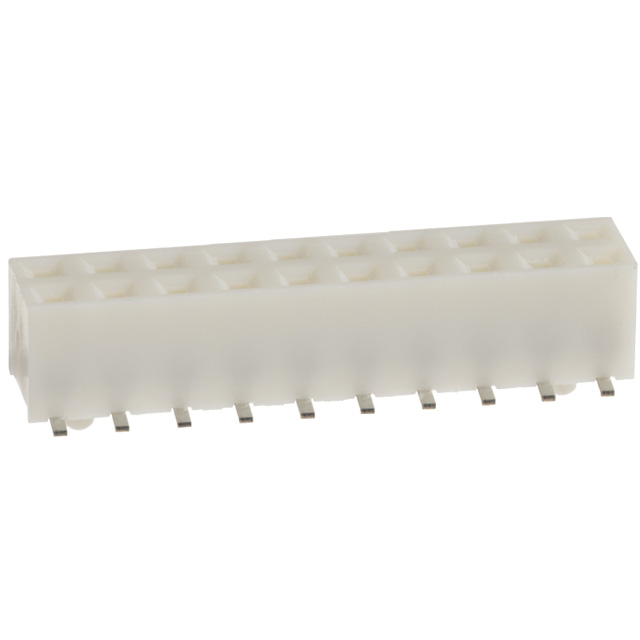

A3A-20DA Series

Catalog

CONN RCPT 20POS 0.079 GOLD SMD

Part	Contact Shape	Insulation Material	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Number of Rows [custom]	Fastening Type	Mated Stacking Heights	Material Flammability Rating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Number of Positions Loaded	Voltage Rating	Connector Type	Contact Type
Hirose Electric Co Ltd A3A-20DA-2SV	Square	Polyphenylene Sulfide (PPS)	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	20	2	Push-Pull	5.1 mm 6 mm	UL94 V-0	Surface Mount	8 µin	0.203 µm	Board Guide	Board to Board Cable	2 mm	0.079 in	Gold	Tin	0.079 "	2 mm	Brown	Solder	-55 C	85 °C	0.165 in	4.2 mm	All	200 VAC	Receptacle	Female Socket
Hirose Electric Co Ltd A3A-20DA-2SV(71)	Square	Polyphenylene Sulfide (PPS)	Phosphor Bronze	General Purpose Telecommunications	39.4 çin	1 çm	20	2	Push-Pull	5.1 mm 6 mm	UL94 V-0	Surface Mount	8 µin	0.203 µm	Board Guide	Board to Board Cable	2 mm	0.079 in	Gold	Tin	0.079 "	2 mm	Brown	Solder	-55 C	85 °C	0.165 in	4.2 mm	All	200 VAC	Receptacle	Female Socket
