POWER TO THE BOARD FML SCKT CNTACT REEL WIRE AWG#16-18

Part	Pin or Socket	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Number of Positions Loaded	Insulation Material	Contact Length - Mating	Contact Length - Mating	Contact Type	Number of Positions	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Mounting Type	Shrouding	Contact Finish - Mating	Voltage Rating	Pitch - Mating	Pitch - Mating	Termination	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Color	Style	Number of Rows [custom]	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Tool Type	For Use With/Related Products	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Current Rating (Amps)	Row Spacing [x]	Row Spacing [x]	Pitch	Pitch	Color	Insulation Height [z]
Hirose Electric Co Ltd MDF6-1618SCF	Socket	Tin	16 AWG	18 AWG	Crimp

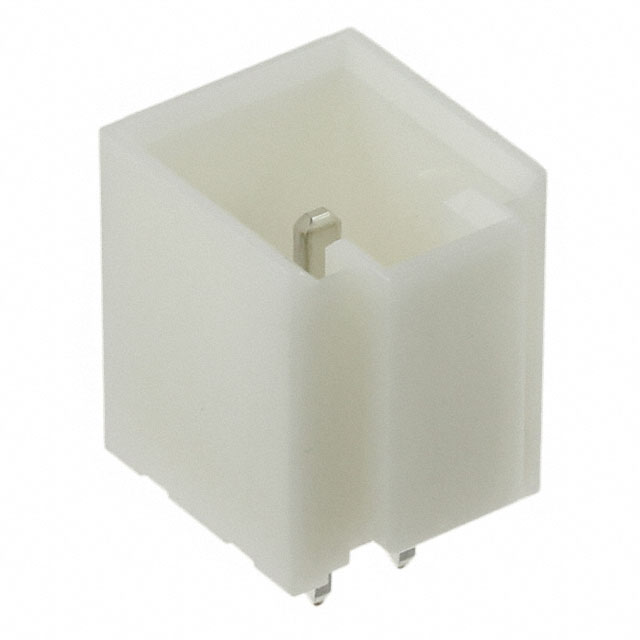

Hirose Electric Co Ltd MDF6-4DP-3.5DSA(05)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm	Male Pin	4	Square	85 °C	-30 ░C	Brass	13 mm	0.512 in	0.197 in	5 mm	UL94 V-0	Through Hole	Shrouded - 4 Wall	Tin-Copper	300 VDC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm
Hirose Electric Co Ltd MDF6-TA2022HC																																					Hand Crimper	Rectangular Contacts	20 AWG	22 AWG

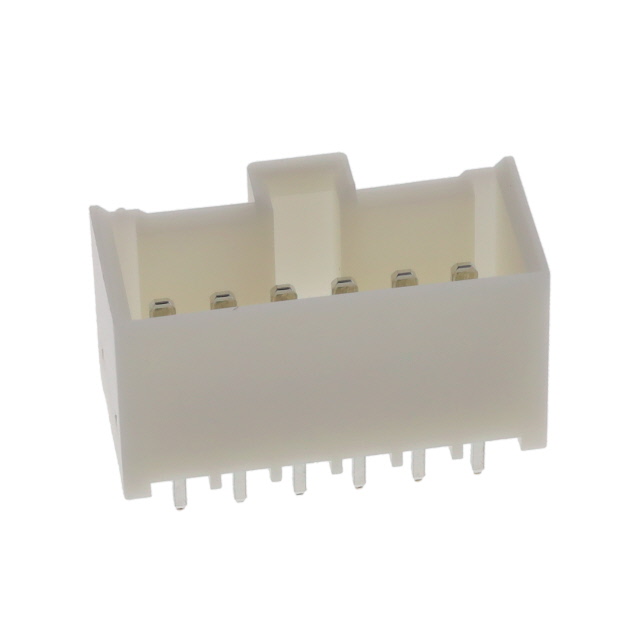

Hirose Electric Co Ltd MDF6-12DP-3.5DSA(23)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm 5.6 mm	Male Pin	12	Square	85 °C	-30 ░C	Brass	13 mm	0.512 in	0.197 in	5 mm	UL94 V-0	Through Hole	Shrouded - 4 Wall		300 VAC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm					39.4 çin	1 çm	Tin	Varies by Wire Gauge

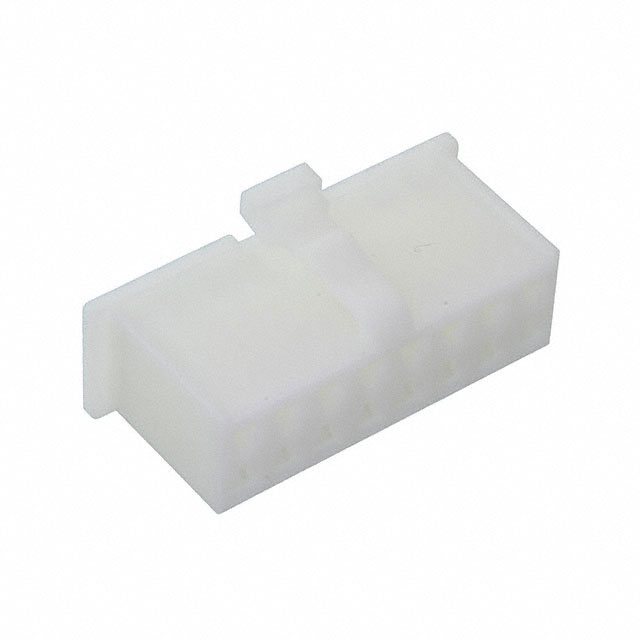

Hirose Electric Co Ltd MDF6-6DS-3.5C					Crimp		Nylon Polyamide (PA)			Female Socket	6		85 °C	-30 ░C							Free Hanging (In-Line)									Socket			2	Latch Lock											5 mm	0.197 in	3.5 mm	0.138 "	White

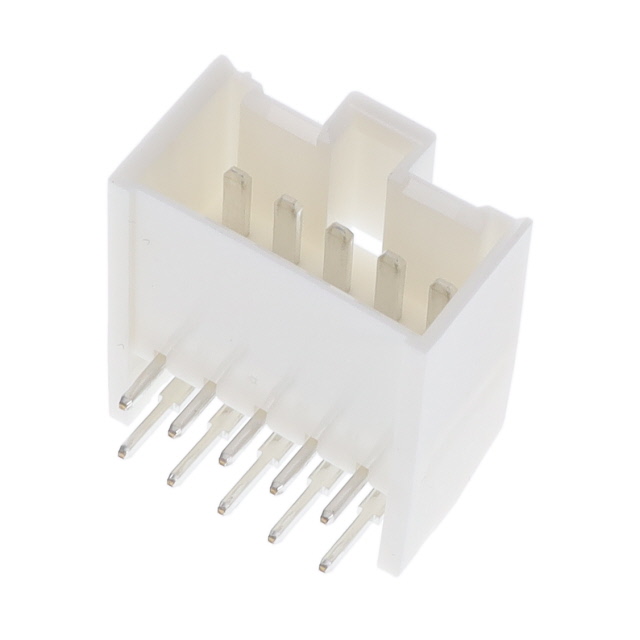

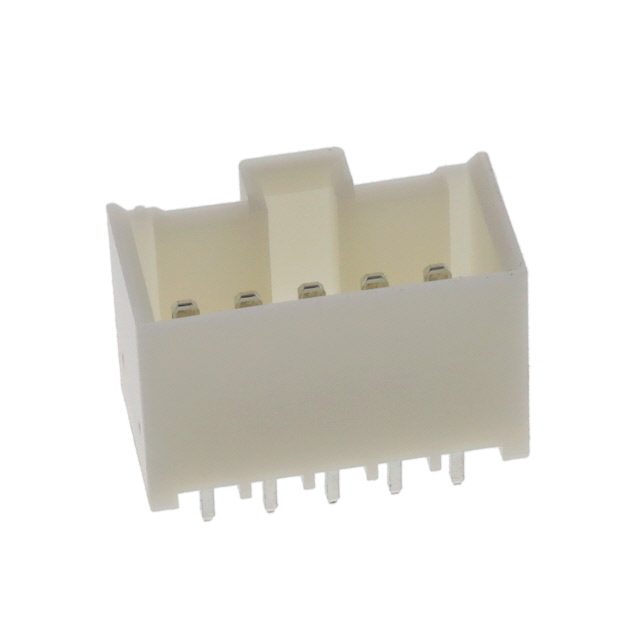

Hirose Electric Co Ltd MDF6-10DP-3.5DS(23)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm 5.6 mm	Male Pin	10	Square	85 °C	-30 ░C	Brass	11.3 mm		0.197 in	5 mm	UL94 V-0	Right Angle Through Hole	Shrouded - 4 Wall		300 VAC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm					39.4 çin	1 çm	Tin	Varies by Wire Gauge						0.445 "

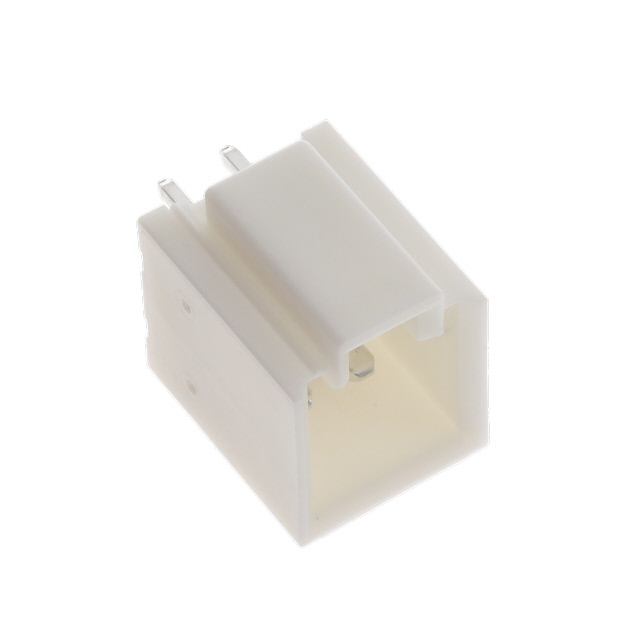

Hirose Electric Co Ltd MDF6-4DP-3.5DSA(23)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm 5.6 mm	Male Pin	4	Square	85 °C	-30 ░C	Brass	13 mm	0.512 in	0.197 in	5 mm	UL94 V-0	Through Hole	Shrouded - 4 Wall		300 VAC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm					39.4 çin	1 çm	Tin	Varies by Wire Gauge
Hirose Electric Co Ltd MDF6-18DS-3.5C					Crimp		Nylon Polyamide (PA)			Female Socket	18		85 °C	-30 ░C							Free Hanging (In-Line)									Socket			2	Latch Lock											5 mm	0.197 in	3.5 mm	0.138 "	White
Hirose Electric Co Ltd MDF6-10DP-3.5DSA(23)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm 5.6 mm	Male Pin	10	Square	85 °C	-30 ░C	Brass	13 mm	0.512 in	0.197 in	5 mm	UL94 V-0	Through Hole	Shrouded - 4 Wall		300 VAC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm					39.4 çin	1 çm	Tin	Varies by Wire Gauge

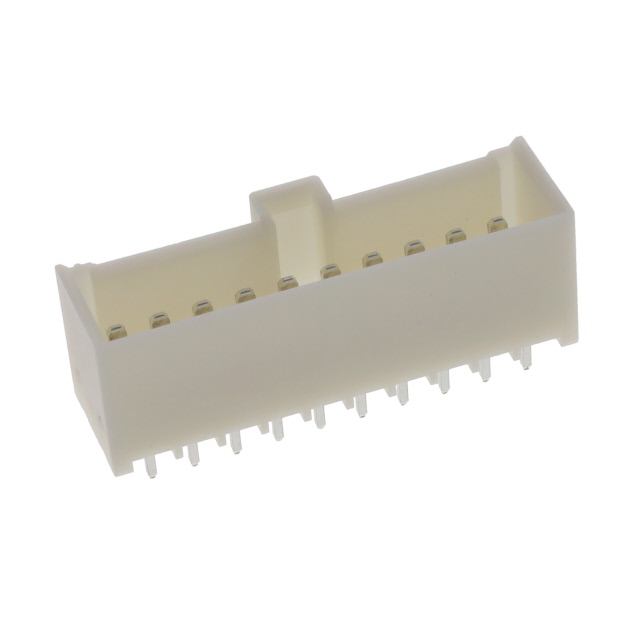

Hirose Electric Co Ltd MDF6-20DP-3.5DSA(23)						All	Nylon Polyamide (PA)	0.22 in	5.59 mm 5.6 mm	Male Pin	20	Square	85 °C	-30 ░C	Brass	13 mm	0.512 in	0.197 in	5 mm	UL94 V-0	Through Hole	Shrouded - 4 Wall		300 VAC	0.138 in	3.5 mm	Solder	0.138 in	3.5 mm	Header	White	Board to Cable/Wire	2	Latch Holder	39.4 µin	1 µm					39.4 çin	1 çm	Tin	Varies by Wire Gauge
