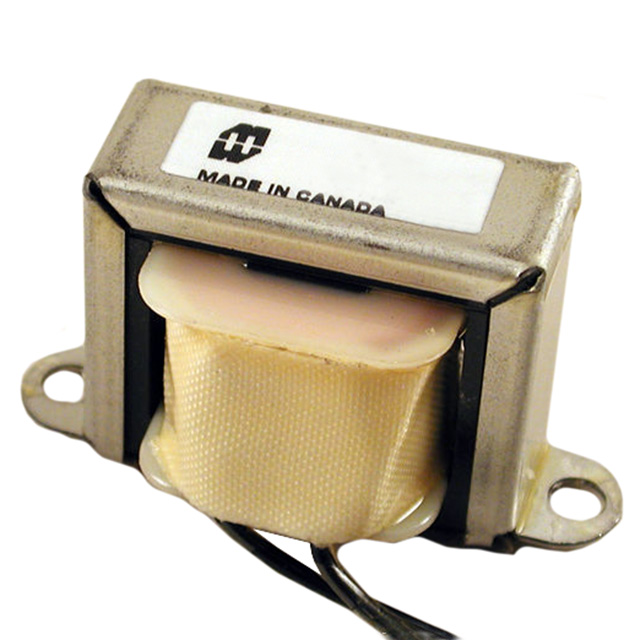

153-159 Series Series
Manufacturer: Hammond Manufacturing
Beta
⌘K
POWER INDUCTORS - LEADED DC REACTOR, FILTER CHOKE, OPEN CHANNEL MOUNT, INDUCTANCE 1MH, DC CURRENT 10A
| Part | DC Resistance (DCR) | Tolerance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] | Package / Case | Current Rating (Amps) | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Inductance | Shielding | Height - Seated (Max) [Max] [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hammond Manufacturing | 38 mOhm | 15 % | 2 in | 50.8 mm | Nonstandard | 10 A | Chassis Mount | 82.55 mm | 3.25 " | 1.75 " | 44.45 mm | 1 mH | Unshielded | |
Hammond Manufacturing | 408 Ohm | 15 % | 2 in | 50.8 mm | Nonstandard | 50 mA | Chassis Mount | 82.55 mm | 3.25 " | 1.75 " | 44.45 mm | 10 H | Unshielded | |
 Hammond Manufacturing | 3.7 kOhm | 15 % | 1.69 in | Nonstandard | 8 mA | Chassis Mount | 71.37 mm | 2.81 " | 1.5 " | 38.1 mm | 150 H | Unshielded | 42.93 mm |
