A1P35 Series

ACEPACK1 sixpack topology, 1200 V, 35 A trench-gate field stop IGBT M series, soft diode and NTC

Catalog

ACEPACK1 sixpack topology, 1200 V, 35 A trench-gate field stop IGBT M series, soft diode and NTC

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Configuration	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	NTC Thermistor	Power - Max [Max]	IGBT Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Input Capacitance (Cies) @ Vce	Package / Case	Input	Supplier Device Package
STMicroelectronics A1P35S12M3-F	1200 V	Three Phase Inverter	2.45 V	35 A		250 W	Trench Field Stop	-40 °C	150 °C	Chassis Mount	2.154 nF	Module	Standard	ACEPACK™ 1

Catalog

ACEPACK1 sixpack topology, 1200 V, 35 A trench-gate field stop IGBT M series, soft diode and NTC

Description

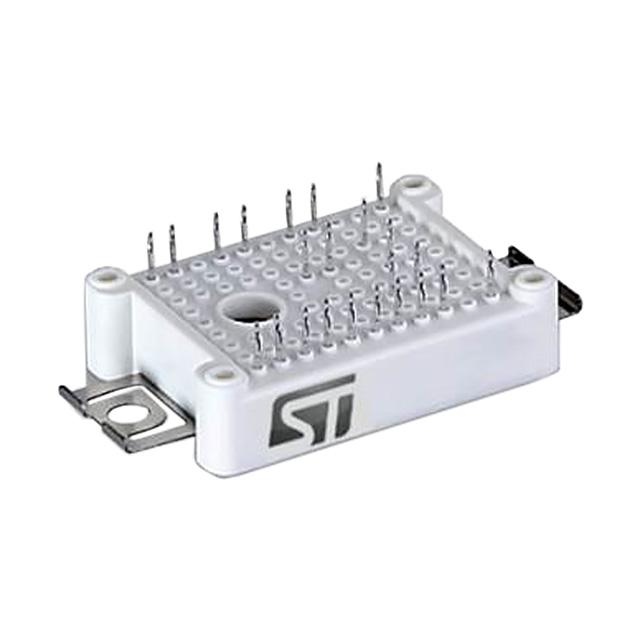

This power module is a sixpack topology in an ACEPACK™ 1 package with NTC, integrating the advanced trench gate field-stop technologies from STMicroelectronics. This new IGBT technology represents the best compromise between conduction and switching loss, to maximize the efficiency of any converter system up to 20 kHz.
