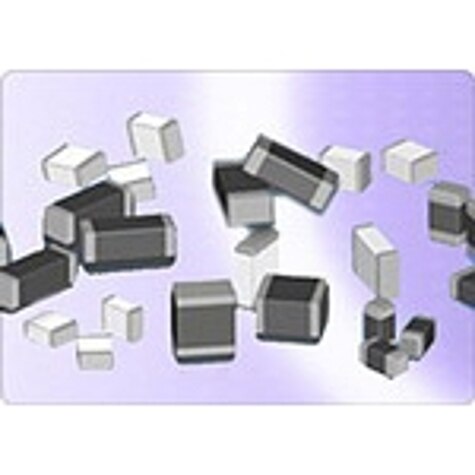

RF Inductors - SMD 33000nH 1.05ohms 5mA
RF Inductors - SMD 33000nH 1.05ohms 5mA
| Part | DC Resistance (DCR) [Max] | Frequency - Self Resonant | Inductance Frequency - Test | Q @ Freq | Mounting Type | Inductance | Material - Core | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Current Rating (Amps) | Tolerance | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Technologies EMI | 1.05 Ohm | 13 MHz | 400 kHz | 35 400 kHz | Surface Mount | 33 µH | Ferrite | 125 °C | -40 C | 0.055 in | 1.4 mm | Multilayer | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 (3216 Metric) | 5 mA | 10 % | Unshielded |
