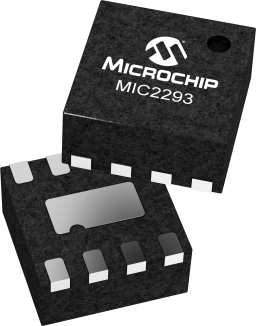

MIC2293C Series
2.0MHz White LED Driver w/ 15V OVP w/ Internal Schottky
Manufacturer: Microchip Technology
Catalog
2.0MHz White LED Driver w/ 15V OVP w/ Internal Schottky
Key Features
• + 2.5V to 10V input voltage
• + Output voltage up to 34V
• + Internal Schottky diode
• + 1.6MHz PWM operation (MIC2292C)
• + 2.0MHz PWM operation (MIC2293C)
• + Stable with ceramic capacitors
• + 15V and 34V output overvoltage protection options
• + 500mA switch current rating
• + 95mV feedback voltage
• + <1% line and load regulation
• + <1µA shutdown current
• + Over-temperature protection
• + UVLO
• + -40°C to +125°C junction temperature range
Description
AI
The MIC2292C and MIC2293C are high frequency, pulse-width modulator (PWM) boost regulators optimized for constant-current, white LED driver applications. Because of their constant PWM switching frequencies of 1.6MHz and 2MHz, respectively, the MIC2292/93C can use the smallest external components, allowing designers to avoid sensitive IF bands in their RF applications.
The products feature an internal Schottky diode and two levels of output overvoltage protection allowing a small size and efficient DC/DC solution that requires only four external components.
The 2.5V to 10V input voltage range of MIC2292/3C allows direct operation from 1- and 2-cell Li-Ion as well as 3- to 4-cell NiCad/NiMH/Alkaline batteries.
