C2538 Series

Catalog

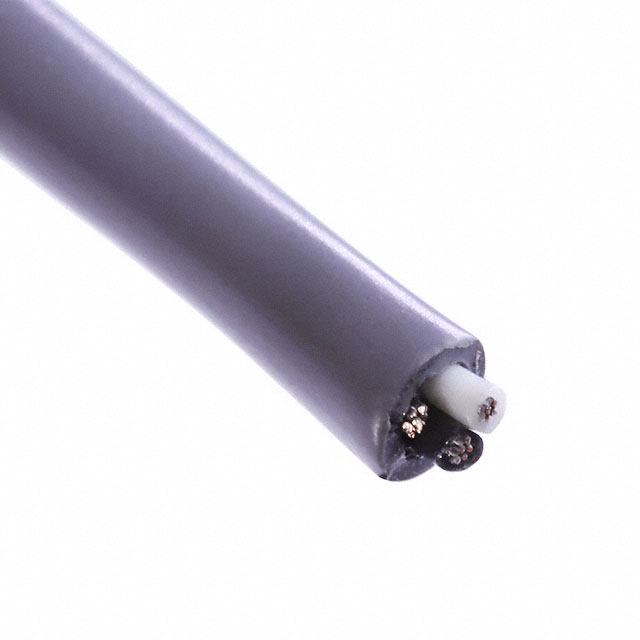

CABLE 2COND 14AWG GRAY SHLD 500'

Part	Shield Material	Shield Coverage	Length	Length	Usage	Ratings	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Number of Conductors	Voltage	Conductor Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket (Insulation) Material	Jacket Color	Conductor Insulation	Length [x]	Length [x]
Prysmian Group C2538A.18.10	Flexfoil®	100 %	152.4 m	500 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	Gray	Polyethylene (PE)
Prysmian Group C2538A.41.10			15.24 m 152.4 m 304.8 m	50 ft 500 ft 1000 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	Gray	Polyethylene (PE)	100 ft	30.5 m
Prysmian Group C2538A.38.10	Flexfoil®	100 %	152.4 m	500 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	Gray	Polyethylene (PE)
Prysmian Group C2538A.38.02	Flexfoil®	100 %	152.4 m	500 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	White	Polyethylene (PE)
Prysmian Group C2538A.38.10			152.4 m	500 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	Gray	Polyethylene (PE)
Prysmian Group C2538A.41.10	Flexfoil®	100 %	152.4 m 304.8 m	500 ft 1000 ft	Communication Control	ASTM B-33	14.5 AWG	0.335 in	8.51 mm	Multi-Conductor	2	600 V	Copper Annealed Tinned	Foil	19	0.0147 in	0.813 mm	0.032 in	Drain Wire	Poly-Vinyl Chloride (PVC)	Gray	Polyethylene (PE)	100 ft	30.5 m
