BYV29 Series

Catalog

DIODE GEN PURP 600V 9A D2PAK

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Technology	Voltage - Forward (Vf) (Max) @ If [Max]	Supplier Device Package	Speed	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Package / Case	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If
WeEn Semiconductors BYV29FB-600,118	600 V	Surface Mount	Standard	1.9 V	D2PAK	200 mA 500 ns	150 °C	9 A	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 ns	50 µA
WeEn Semiconductors BYV29G-600PQ	600 V	Through Hole	Standard	1.3 V	TO-262 (I2PAK)	200 mA 500 ns	175 ░C	9 A	I2PAK TO-262-3 Long Leads TO-262AA	75 ns	10 µA	8 A

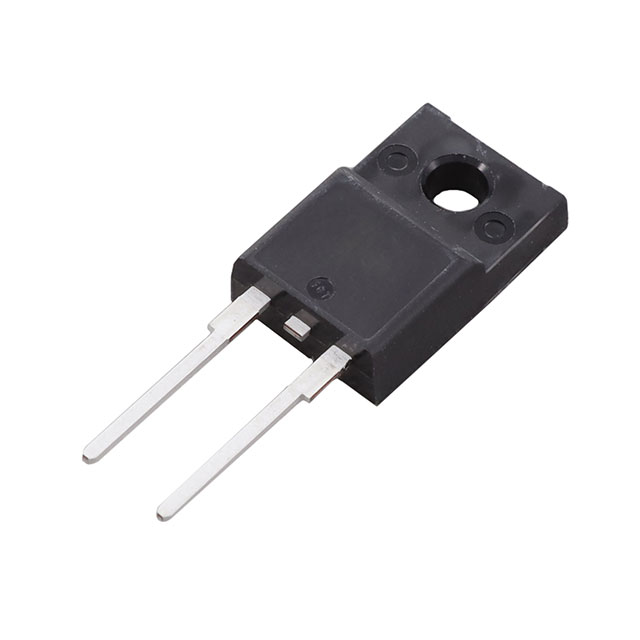

WeEn Semiconductors BYV29X-500,127	500 V	Through Hole	Standard		TO-220FP	200 mA 500 ns	150 °C	9 A	TO-220-2 Full Pack Isolated Tab	60 ns	50 µA	1.25 V
WeEn Semiconductors BYV29G-600,127	600 V	Through Hole	Standard		TO-262 (I2PAK)	200 mA 500 ns	150 °C	9 A	I2PAK TO-262-3 Long Leads TO-262AA	60 ns	50 µA	1.25 V
WeEn Semiconductors BYV29X-600AQ		Through Hole			TO-220F				TO-220-2 Full Pack Isolated Tab
WeEn Semiconductors BYV29FD-600,118	600 V	Surface Mount	Standard	1.9 V	DPAK	200 mA 500 ns	150 °C	9 A	DPAK (2 Leads + Tab) SC-63 TO-252-3	35 ns	50 µA
WeEn Semiconductors BYV29-600,127	600 V	Through Hole	Standard		TO-220AC	200 mA 500 ns	150 °C	9 A	TO-220-2	60 ns	50 µA	1.25 V
WeEn Semiconductors BYV29X-600,127	600 V	Through Hole	Standard		TO-220FP	200 mA 500 ns	150 °C	9 A	TO-220-2 Full Pack Isolated Tab	60 ns	50 µA	1.26 V
WeEn Semiconductors BYV29X-600PQ	600 V	Through Hole	Standard	1.3 V	TO-220FP	200 mA 500 ns	175 ░C	9 A	TO-220-2 Full Pack Isolated Tab	75 ns	10 µA	8 A
WeEn Semiconductors BYV29-600PQ	600 V	Through Hole	Standard	1.3 V	TO-220AB	200 mA 500 ns	175 ░C	9 A	TO-220-3	75 ns	10 µA	8 A
