C0764 Series
Manufacturer: Prysmian Group
Beta
⌘K

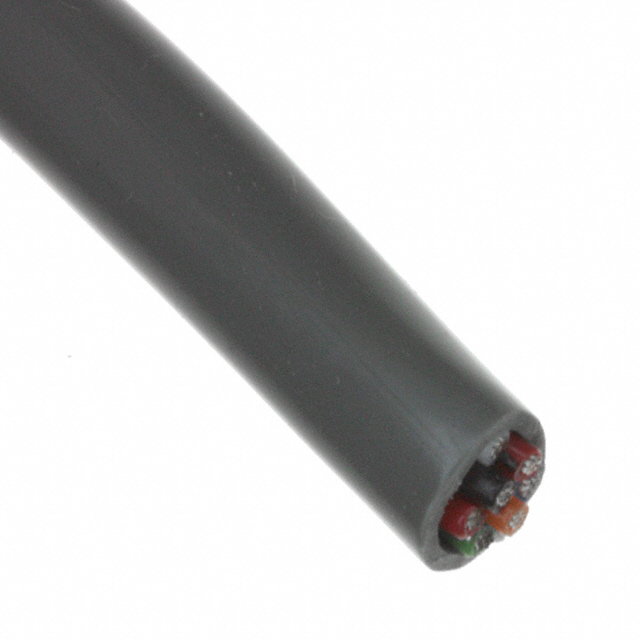

CABLE 8COND 22AWG GRAY SHLD
| Part | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Ratings | Shield Coverage | Jacket (Insulation) Material | Conductor Material | Conductor Insulation | Usage | Voltage | Cable Type | Shield Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Features | Shield Type | Number of Conductors [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Gray | 0.235 " | 5.97 mm | 15.24 m 304.8 m | 50 ft 1000 ft | ASTM B-33 | 100 % | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Poly-Vinyl Chloride (PVC) | Computer | 300 VDC | Multi-Conductor | Flexfoil® | 22 AWG | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 30 AWG | 7 | Drain Wire | Foil | 8 |
Prysmian Group | Gray | 0.235 " | 5.97 mm | 15.24 m 304.8 m | 50 ft 1000 ft | ASTM B-33 | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Poly-Vinyl Chloride (PVC) | Computer | 300 VDC | Multi-Conductor | 22 AWG | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 30 AWG | 7 | Drain Wire | Foil | 8 | ||
 Prysmian Group | Gray | 0.235 " | 5.97 mm | 152.4 m | 500 ft | ASTM B-33 | 100 % | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Poly-Vinyl Chloride (PVC) | Computer | 300 VDC | Multi-Conductor | Flexfoil® | 22 AWG | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 30 AWG | 7 | Drain Wire | Foil | 8 |
Prysmian Group | Gray | 0.235 " | 5.97 mm | 152.4 m | 500 ft | ASTM B-33 | Poly-Vinyl Chloride (PVC) | Copper Annealed Tinned | Poly-Vinyl Chloride (PVC) | Computer | 300 VDC | Multi-Conductor | 22 AWG | 80 °C | -20 ░C | 0.813 mm | 0.032 in | 30 AWG | 7 | Drain Wire | Foil | 8 |
